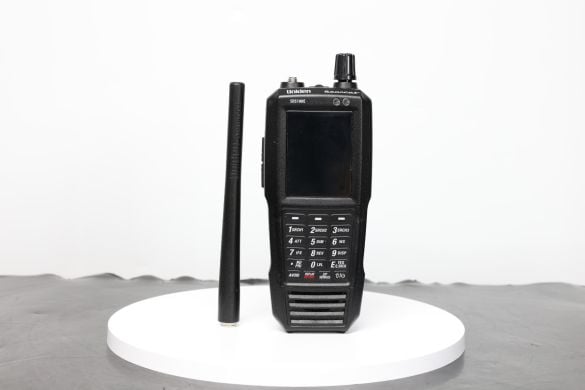

Uniden SDS100E (USED)
SKU Part Number: U22365
The product is in good condition, including antenna, battery (the battery is not included in the product warranty), manual, charger and...
Read More
£599.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including antenna, battery (the battery is not included in the product warranty), manual, charger and box.

SPECIFICATIONS

GENERAL
Type: HF/VHF/UHF receiver/scanner
Frequency range: Europe
25-512 / 806-960 / 1240-1300 MHz
Tuning steps: 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz
Frequency stability: ? ppm
Mode: AM / FM / NFM / FMB / WFM / DV (DMR/MotoTRBO, NXDN)
Channels / memory management: Enhanced dynamic memory system
Alpha tags
Power supply: 3.7 VDC (Li-Ion battery)
or 5 VDC external (USB jack)
Current drain / power consumption: ? mA
Antenna impedance / connector: 50 ohm / SMA
Dimensions (W*H*D): 65*167*50 mm (2.56*6.58*1.97")
Weight: 337 g (11.9 oz), with battery and antenna
Other features: Customizable color display. Close call. USA & Canada
data base. CTCSS/PL. DCS. Backlit keypad. USB connector.
S.A.M.E. weather alert. Recording/playback. Trunktracker V.
Tracks Motorola, EDACS, APCO25, X2-TDMA and LTR.
PC programming and control. GPS. Micro-SD card slot and
much more.


RECEIVER SECTION
Receiver system: SDR technology
Sensitivity: AM (Nominal @ 12 dB SINAD)
25.005 MHz: 0.7 uV
118.800 MHz: 0.7 uV
127.175 MHz: 0.7 uV
135.500 MHz: 0.6 uV
225.050 MHz: 0.7 uV
272.950 MHz: 0.7 uV
315.050 MHz: 0.7 uV
325.050 MHz: 0.5 uV
FM (Nominal @ 12 dB SINAD)
72.515 MHz: 0.25 uV
NFM (Nominal @ 12 dB SINAD)
40.840 MHz: 0.35 uV
53.980 MHz: 0.3 uV
138.150 MHz: 0.6 uV
161.985 MHz: 0.35 uV
173.225 MHz: 0.35 uV
216.020 MHz: 0.35 uV
406.875 MHz: 0.35 uV
511.9125 MHz: 0.35 uV
806.100 MHz: 0.45 uV
857.150 MHz: 0.4 uV
954.9125 MHz: 0.5 uV
1299.925 MHz: 1 uV
WFM (Nominal @ 12 dB SINAD)
54.050 MHz: 0.5 uV
197.450 MHz: 0.6 uV
FMB (Nominal @ 12 dB SINAD)
107.500 MHz: 0.8 uV
Close call (Nominal, no modulation)
-57 to -52 dBm (Depending on band)
Squelch sensitivity: AM: 0.3 uV (Nominal treshold)
FM/NFM: 0.2-0.3 uV (Nominal treshold)
WFM/FMB: 0.8 uV (Nominal treshold)
