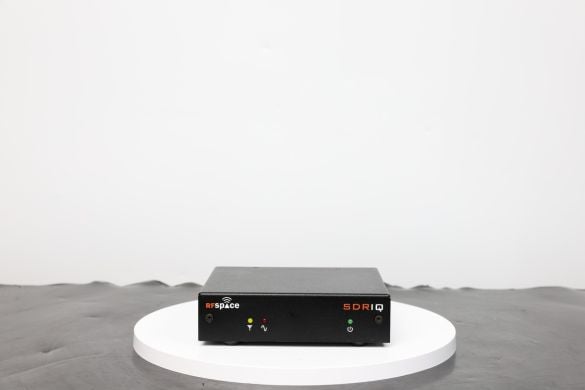

RF Space SDR IQ (USED)
SKU Part Number: U22377
The product is in good condition, no box, manual or USB cable. Specifications:-Frequency Range: 500Hz to 30 MHz in 1 Hz steps. (Usable down to 100...
Read More
£199.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, no box, manual or USB cable.

Specifications:-
Frequency Range: 500Hz to 30 MHz in 1 Hz steps. (Usable down to 100 Hz)
Input Impedance: 50 Ohms
Clipping RF level (Max Gain): -4dBm (Typ)
Maximum Frequency display BW: 190 KHz
Sampling Rate: 66.666 MHz
I/Q Image Rejection: 80 dB+ (Typ)
MDS (500 Hz): -127 dBm @ 14 MHz
Input IP3: 15dBm+ (Typ) * Measured with a dither signal
Voltage: 5 Volts (USB port powered)
Current Draw: 425 mA
Connectors: BNC (RF In), USB 2.0, RS-232 (Serial Bi-directional)
Indicators: Power (Green), Sample (Yellow), ADC Clip (Red)
Dimensions: 3.75x3.75x1.25 Inches
Processor: Atmel AT91SAM7S256 w/ JTAG port.
Analog Demod: AM, WFM, USB, LSB, N-FM, DSB and CW
