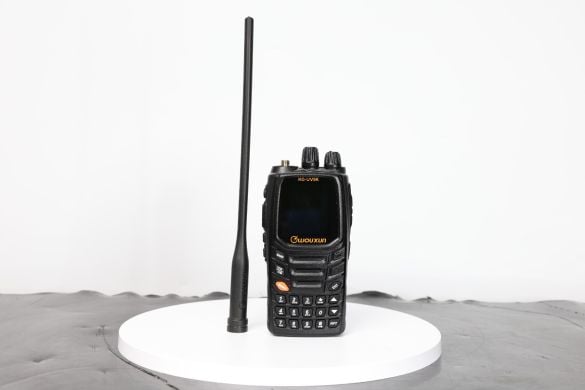

Wouxun KG-UV9K (USED)
SKU Part Number: U22468
The product is in good condition, including all accessories including the bag. No box. SPECIFICATIONS GENERAL Type: Amateur VHF/UHF...
Read More
£80.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including all accessories including the bag. No box.

SPECIFICATIONS

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: TX: 136-174 / 400-512 MHz
RX: 76-108 / 108-136 / 136-180 / 230-250 / 350-512 / 700-985 MHz
Tuning steps: 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
Frequency stability: ±2.5 ppm @ -20 to +40°C (-4 to +104°F)
Mode: TX: FM / NFM
RX: AM / FM / NFM / WFM
Channels / memory management: 999 regular with alpha tags
Scanning
Repeater shift / offset: Programmable
Power supply: 7.4 VDC (Li-Ion battery pack)
Current drain / power consumption: RX: ? mA
TX: Max ? A
Antenna impedance / connector: 50 ohm / ?
Dimensions (W*H*D): 58*123*31 mm (2.28*4.84*1.22")
Weight: 490 g (1.08 lb)
Other features: CTCSS/PL. DTMF encode/decode. Crossband repeater. VOX.
Voice guide. LED flashlight. Stopwatch. Twin RX.


RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: AM (12 dB S/N)
108-136 MHz: 1.12 uV
FM (12 dB SINAD)
136-180 MHz: 0.25 uV
230-250 MHz: 0.35 uV
350-512 MHz: 0.25 uV
700-986 MHz: 3.55 uV
Squelch sensitivity:
Noise figure:
Selectivity: FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel)
Image rejection:
AF output power / speaker: 500 mW at 5% distortion / ? ohm
External speaker connector:


TRANSMITTER SECTION
RF output power:
  High Mid Low
2 m: 5 W 2 W 1 W
70 cm: 4 W 2 W 1 W
Modulation system:
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Better than -? dB
Microphone impedance / connector: ? ohm / ?-pin
Microphone input level: ? mV
