Armoloq TPA Package for Icom IC-7200 with RF Package PL-TNC/RA3
SKU Part Number:
ARMOLOQ TPA-7200
Note some images may include optional accessories that are not supplied. Please see the description below for the full product contents.
Armoloq...
Read More
Read More
£269.95
Pre Order
Seen this product cheaper elsewhere?
Call 0345 2300 599Note some images may include optional accessories that are not supplied. Please see the description below for the full product contents.

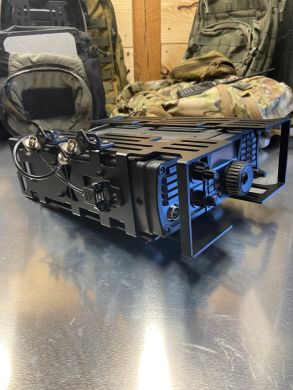

Armoloq TPA-7200 with RF Package PL-TNC RA3 is a rugged two piece protective mounting platform designed specifically for the Icom IC-7200. CNC laser cut from one eighth inch 5052 aluminium and finished in a durable matte black powder coat, the TPA-7200 provides comprehensive protection for both the radio body and control head while maintaining full access to all controls, ports and connectors.
The wrap around frame secures to eight factory side chassis mounting points, creating a rigid protective cage suitable for mobile installations, go box builds and field deployments where durability and equipment protection are essential. Please note that the rubber pads located at the bottom rear of the radio must be removed prior to installation of the TPA frame.
This kit includes the RF Plug and Play Package PL-TNC RA3 as standard. The RF package allows clean and reliable antenna relocation using a right angle coax lead and bulkhead mounted connector, reducing cable strain and improving installation flexibility for portable and mobile radio setups.
Relocation mounts are one inch in depth and may add an additional one to two inches to the overall depth depending on placement.
Note- the rubber pads at the bottom rear of the radio will need to be removed in order to install the TPA.
Package contents
TPA-7200 protective frame
Two piece protective mounting platform for the Icom IC-7200
CNC laser cut from one eighth inch 5052 aluminium
Matte black powder coated finish
Wrap around design with full access to controls and display
Secures to eight side chassis mounting points
Mounting hardware
Eight M4 0.7 x 10 mm socket head screws
Correct length to prevent damage to radio internals
Not to be installed without the TPA pack frame
Included RF plug and play package PL-TNC RA3
Right angle PL-259 to TNC male cable, one foot RG58C U
TNC female bulkhead connector
TNC male to BNC female adapter
| Specification | Details |
|---|---|
| Product name | Armoloq TPA-7200 |
| Compatible radio | Icom IC-7200 |
| Construction | Two piece protective mounting platform |
| Mounting points | Eight side chassis mounts |
| Frame material | 5052 aluminium, one eighth inch thickness |
| Relocation mount material | 6061 aluminium |
| Finish | Matte black powder coat |
| Length | 14.000 inches |
| Depth | 4.000 inches |
| Overall width including radio | 9.750 inches |
| Relocation mount depth | 1.000 inch |
| Additional depth with relocation mounts | One to two inches depending on placement |
| Weight | 2.000 pounds |
| Included hardware | Eight M4 socket head mounting screws |
| RF package | Right angle PL-259 to TNC lead, TNC bulkhead, TNC to BNC adapter |
