Armoloq TPA-857B with RF Package (PL-TNC/RA3)
Rugged aluminium protective frame for the Yaesu FT-857 and FT-857D, supplied with one PL-TNC/RA3 RF Plug-and-Play Package for clean and convenient antenna connection.
If you require an N-Type connection for 2m/70cm, please select the appropriate option separately from the Accessories section.

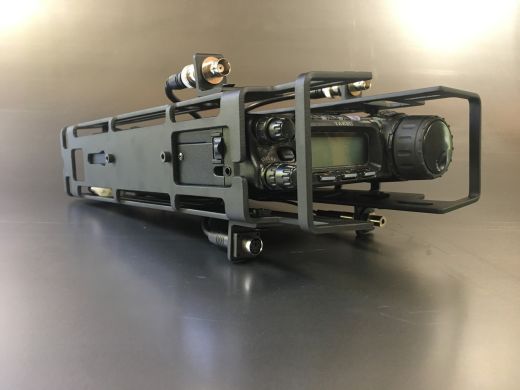

The Armoloq TPA-857B is a rugged, precision-engineered two-piece protective mounting platform designed specifically for the Yaesu FT-857 and FT-857D transceivers.
Manufactured from CNC laser-cut 1/8" 5052 aluminium and finished in a matte black powder coat, the TPA-857B adds substantial protection and useful mounting capability for field, mobile, manpack and go-box installations.
Its wrap-around construction helps protect both the radio body and control head while maintaining access to the front-facing controls and connections. The frame secures directly to the FT-857 using the radio's four side mounting points and the supplied correctly sized mounting screws.
Purpose-designed around the Yaesu FT-857 and FT-857D chassis and side mounting points.
CNC laser-cut from 1/8" 5052 aluminium and finished in a durable matte black powder coat.
Helps protect the radio body and control head while retaining access to the controls and connections.
Supplied with one right-angle RF Plug-and-Play Package for convenient remote antenna connection.
Serious Protection Without Blocking Access
The TPA-857B surrounds the radio with a rigid aluminium structure designed to help protect vulnerable areas during transport, field operation and mobile use.
The frame attaches using the FT-857's four side mounting holes, creating a secure installation without requiring permanent modification to the radio.
Its open construction retains access to the radio's front-facing controls and ports, allowing the FT-857 to remain practical to operate while installed in the frame.
Cleaner Antenna Connections
This version of the TPA-857B is supplied with one Armoloq RF Plug-and-Play Package in PL-TNC/RA3 configuration.
The included assembly uses a PL-259 right-angle connector to a TNC female bulkhead with a 1ft length of RG58C/U coax. A TNC male to BNC female adaptor is also supplied.
The bulkhead arrangement allows the radio's antenna connection to be relocated to a more convenient position on the pack frame, helping with cable management, strain relief and faster connection in portable or mounted installations.
This kit includes the PL-TNC/RA3 RF package only. If you would also like an N-Type connection for the FT-857's 2m/70cm antenna port, select the appropriate RF package separately from the Accessories section.
Package Includes
- Two-piece protective frame for Yaesu FT-857 and FT-857D
- CNC laser-cut from 1/8" 5052 aluminium
- Matte black powder-coated finish
- Four M4-0.7 x 10mm mounting screws
- Secures to the radio's four side mounting holes
- Wrap-around design for enhanced durability and controlled access
- One PL-259 right angle to TNC female bulkhead assembly
- 1ft RG58C/U coax
- One TNC male to BNC female adaptor
- One mounting bracket for the bulkhead
The supplied M4-0.7 x 10mm screws are the correct length for installation with the TPA frame. They should not be fitted to the radio without the TPA frame in place.
Dimensions and Weight
Built for Portable and Mounted Operation
Adds protection and mounting capability for portable and manpack-style FT-857 installations.
Protective frame and relocated RF connection help create a cleaner and more robust mobile setup.
Provides a useful structural platform for integrating the FT-857 into portable communications systems.
Well suited to field operation, off-grid communications and emergency-response radio setups.
Armoloq TPA-857B with RF Package (PL-TNC/RA3)
Pack Frame
PL-TNC/RA3
Package Contents
- Two-piece TPA-857B protective frame
- Four M4-0.7 x 10mm mounting screws
- PL-259 right angle to TNC female bulkhead assembly
- 1ft RG58C/U coax
- TNC male to BNC female adaptor
- Bulkhead mounting bracket
If an N-Type connection is required for 2m/70cm, select the appropriate additional RF package from the Accessories section.
The supplied M4-0.7 x 10mm screws are the correct length for installation with the TPA frame and should not be installed in the radio without the frame in place.
Some images may show optional accessories that are not supplied. The package contents above represent the complete supplied product list.
