Armoloq TPA Package For AT-D578 with RF Package PL-TNC/STRT3
SKU Part Number: ARMOLOQ TPA-AT578
Note some images may include optional accessories that are not supplied. Please see description below for entire product list. Armoloq TPA-AT578...
Read More
£229.96
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Product Accessories

Note some images may include optional accessories that are not supplied. Please see description below for entire product list.

Armoloq TPA-AT578 with RF Package (PL-TNC/STRT3) – Protective Pack Frame for Anytone AT-D578 Series Radios

The Armoloq TPA-AT578 is a rugged, precision-built two-piece protective mounting platform tailored for the Anytone AT-D578 series, including all variants (I, II, III, PLUS, etc.). Constructed from CNC laser-cut 1/8” 5052 aluminum and finished in a matte black powder coat, this pack frame protects both the body and control head of the radio while maintaining full access to controls, ports, and the display.

The TPA attaches to the radio’s four side mounting holes with the included M4 screws and is perfect for mobile installs, go-box builds, and field communications where durability and rapid deployment are critical.

This kit includes the RF Plug-and-Play Package (PL-TNC/STRT3), which enables fast and clean antenna relocation through a bulkhead-mounted TNC port. It simplifies setup while reducing cable strain and keeping your connections secure in any environment.

Package Includes

TPA-AT578 Pack Frame

  • Two-piece protective frame for Anytone AT-D578 series radios (all models)

  • CNC laser-cut from 1/8" 5052 aluminum

  • Matte black powder-coated finish

  • (4) M4-0.7 x 10mm mounting screws – correct length for safe installation (not to be used without TPA frame)

  • Secures to the radio’s 4 side mounting holes

  • Wrap-around design maintains access to all controls and display

Dimensions:

  • Length: 9.375 in

  • Depth: 2.250 in

  • Overall Width (OAW): [Not Specified]

  • Weight (TPA only): 0.750 lbs

  • Weight (TPA + radio): [User-supplied or TBD]

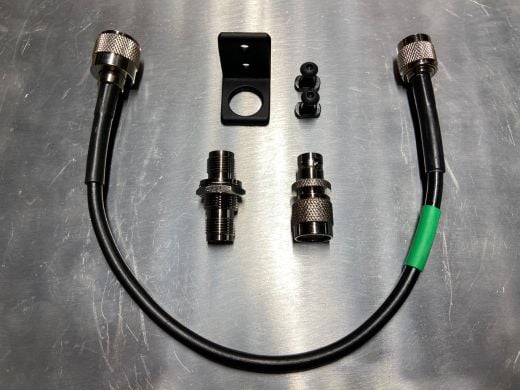

Included RF Plug-and-Play Package (PL-TNC/STRT3)

  • PL-259 straight to TNC male, terminated to 1 ft of RG58C/U coax

  • TNC bulkhead, female

  • TNC male to BNC female adapter

  • Relocation mount with hardware

Designed to streamline antenna routing and minimize setup time, this RF package is perfect for mobile or field use, allowing external antenna connectors to be securely mounted on your equipment case or vehicle.

Key Benefits

  • Converts the Anytone AT-D578 into a field-ready, rugged system

  • Ideal for mobile installs, go-box builds, and tactical setups

  • Maintains full access to front panel controls and screen

  • Wrap-around aluminum frame protects radio body and face

  • RF Plug-and-Play Package simplifies antenna relocation and connectivity
