Armoloq TPA Package for Yaesu FTX-1 with RF Plug-and-Play Package BNC-TNC/RA3

Skip to the beginning of the images gallery

SKU Part Number: ARMOLOQ TPA-FTX1F

Note: Some images may include optional accessories that are not supplied to give you an idea of the modularity of this kit. This Kit comes with one...
Read More

Finance from £9.73 a month

£365.99

Availability: In stock

Seen this product cheaper elsewhere?

Call 0345 2300 599

Overview

Note: Some images may include optional accessories that are not supplied to give you an idea of the modularity of this kit. This Kit comes with one RF Plug-and-Play Package BNC-TNC/RA3 if you require more, please select from the Accessories section below

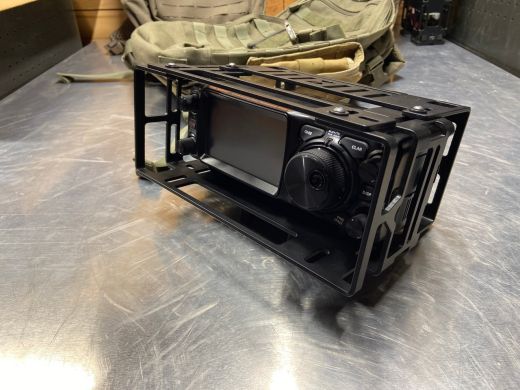

The Armoloq TPA-FTX1 is a precision-engineered protective mounting platform designed exclusively for the Yaesu FTX-1 control head. Built for durability and adaptability, it provides a robust frame system that secures the control head in both field and stationary environments. The TPA-FTX1 features an adjustable depth to accommodate the various rear configurations available for the FTX-1 series.

Supplied with the one RF package, BNC-TNC/RA3, the TPA-FTX1 forms a complete, ready-to-deploy mounting and RF interface solution.

Note: The TPA-FTX1 is designed only for the control head at this time. An SPA-1 compatible version is scheduled for release in March 2026.

Package Includes

Armoloq TPA-FTX1 Mounting System

Main body, cross bar, and back plate (5052 aluminium, 1/8" thickness)
Kickstand and rear bumper (FDM component)
Main body spacers (FDM component)

Hardware Kit

(1) ¼-20 x .500 socket head screw, button head with washer
(2) M4 x 30 mm socket head screws with washers
(4) M4 x 10 mm socket head screws with cam nuts and washers
(2) M4 x 10 mm socket head screws with cam nuts

RF Plug n Play Package

(1) TNC female (bulkhead) to BNC male (right angle) RG-58 jumper cable
(1) TNC male to BNC female adaptor
(1) L shaped bracket for bulkhead
(1) Button Head Screw & M-LOK cam nut

Specifications

Materials and Finish

Frame: 5052 aluminium, 1/8"
Finish: Powder coat, matte black
Weight (TPA only): 1.3 lbs

Adjustable Depth

4.750 in to 6.750 in (to suit varying Yaesu configurations)

Approximate Dimensions
(Values may vary depending on optional packages, accessory placement, and rear configurations.)

FTX-1F with Battery and Tuner, TPA-FTX1, MBS-1280, and All Optional Packages

Vertical/Carry Configuration:
- Height: 12.250 in
- Depth: 6.750 in
- Width: 11.500 in
- Weight: 10 lbs
Tabletop/Operating Configuration:
- Height: 9.500 in
- Depth: 8.000 in
- Width: 11.500 in
- Weight: 10 lbs

FTX-1F with Battery and Tuner, TPA-FTX1, and Optional Packages (No MBS-1280)

Tabletop/Operating Configuration:
- Height: 6.000 in
- Depth: 8.000 in
- Width: 11.500 in
- Weight: 6.2 lbs

Key Benefits

Converts the Yaesu FTX-1 control head into a durable, field-ready platform
Provides excellent protection and stability for portable or desktop use
Adjustable depth accommodates a range of Yaesu rear configurations
Includes Armoloq’s RF Plug-and-Play system for quick deployment
Precision-machined aluminium construction with durable powder-coat finish

Product Information

Dimensions and Weight

Configuration	Height	Depth	Width	Weight
TPA-FTX1 + FTX-1F (Control Head Only)	6.000 in (152.4 mm)	8.000 in (203.2 mm)	11.500 in (292.1 mm)	6.2 lbs (2.81 kg)
TPA-FTX1 + FTX-1F + MBS-1280 + Optional Packages (Tabletop / Operating Configuration)	9.500 in (241.3 mm)	8.000 in (203.2 mm)	11.500 in (292.1 mm)	10.0 lbs (4.54 kg)
TPA-FTX1 + FTX-1F + MBS-1280 + Optional Packages (Vertical / Carry Configuration)	12.250 in (311.2 mm)	6.750 in (171.5 mm)	11.500 in (292.1 mm)	10.0 lbs (4.54 kg)

Notes

Dimensions are approximate and may vary depending on installed accessories and component placement.
The adjustable depth allows the TPA-FTX1 to accommodate various Yaesu rear configurations.
Weights shown are based on typical equipment combinations and may differ slightly with optional fittings.
