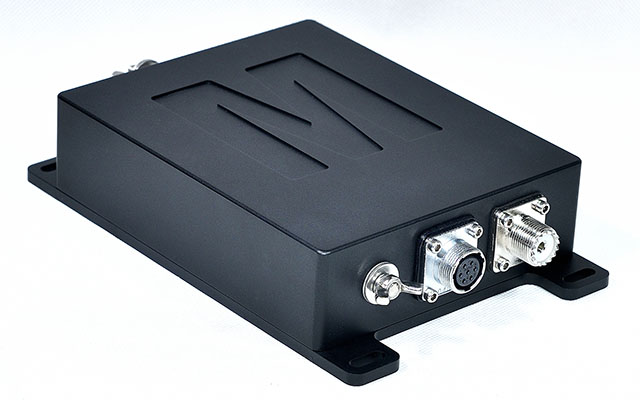

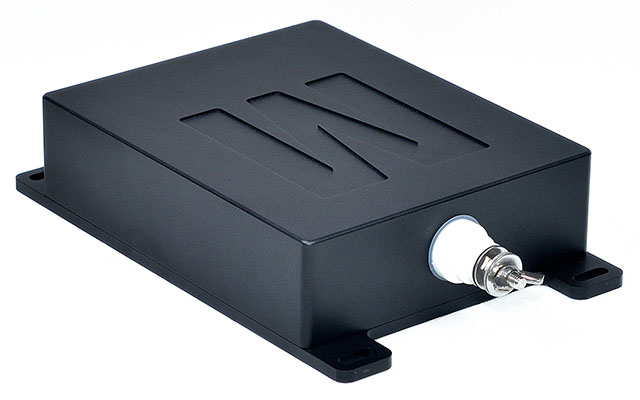

The mAT-40 HF-SSB Automatic Antenna Tuner, lets you rapidly tune any antenna automatically: unbalanced or single-wire. It can be operated by various brands of transmitters by selecting different interface cables, such as ICOM, YAESU, and KENWOOD, just like their own brand tuners. The tuner housing is produced by aluminum milling and oxidation surface technology, beautiful, delicate, compact and firm. It can work well in all kinds of harsh outdoor environments. The maximum size of the tuner is only 20 cm, which is the smallest outdoor antenna tuner now.
The mAT-40 also features advanced memory tuning, providing 16000 memory locations. When tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.
The standard configuration accessory of the tuner does not contain 50 ohm coaxial cable, and the user needs to prepare it himself.
The tuner consists of the following parts: mAT-40 host, control cable (mAT-40-D, 10m), YAESU interface cable (mAT-40-Y), ICOM interface cable (mAT-40-M), KENWOOD interface cable (mAT-40-K). The mAT-40 host and mAT-40-D control cable are necessary parts, and the rest of the interface cables are selected. You can choose different interface cables according to your radio.

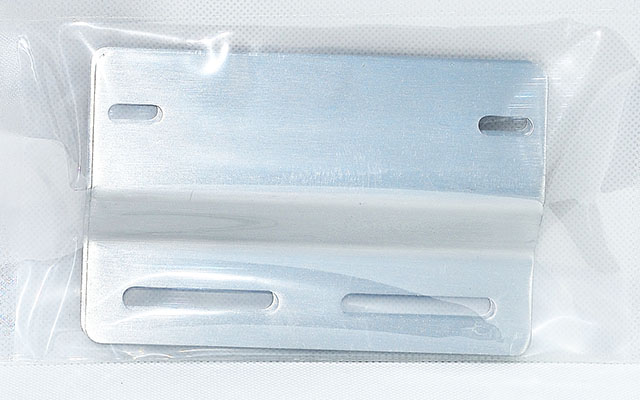

The tuner's extended bracket.Supplied with the tuner, standard accessories. It allows tuners to be installed more conveniently.Stainless steel, strong and reliable, good corrosion resistance.

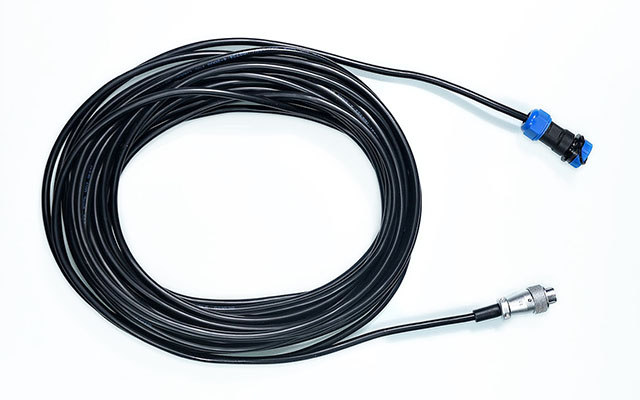

Control cable are standard accessories and are provided with tuners. It is a six core cable with a length of 10 meters.
A plug is connected to the tuner, and the other plug connects different interface cables. There are three kinds of interface cables. Different interface cables are used to connect different brands of transmitters. They are YAESU interface cables, ICOM interface cables and KENWOOD interface cables. The standard configuration of the tuner contains only one specific interface cable, and the other two interface cables are optional and can be purchased selectively.

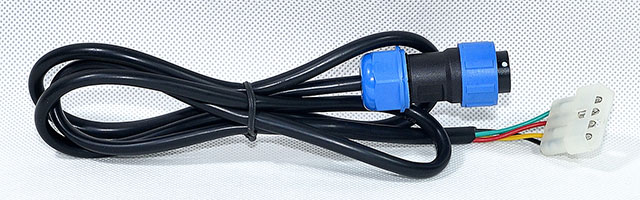

ICOM interface cable mAT-40-M. It is optional and needs to be purchased separately. It is not a standard accessory to the mAT-40.

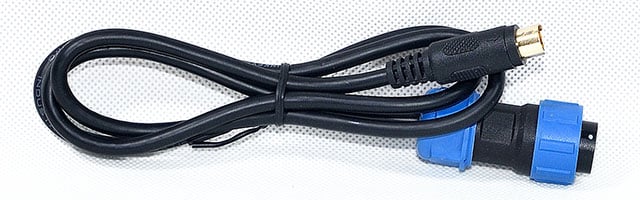

YAESU interface cable mAT-40-Y. It is optional and needs to be purchased separately. It is not a standard accessory to the mAT-40.

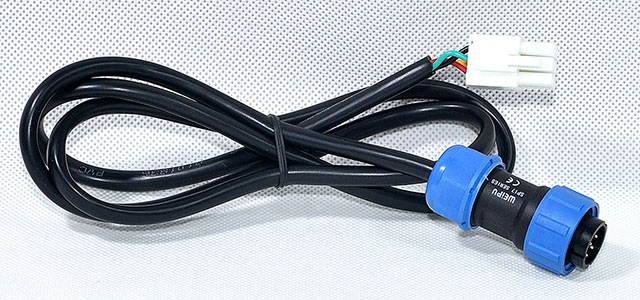

KENWOOD interface cable mAT-40-K. It is optional and needs to be purchased separately. It is not a standard accessory to the mAT-40.
