8 pin Acom 'S' series band data control cable for Yaesu FT-1000/D/MP/MkV FT-2000/D FT-dx5000 FT-dx9000
SKU Part Number: ACM8PHSYSU-B
Premium quality shielded cable – Approx. 1.5m / 4ft 10in in length. The ACM8PHSYSU-B cable provides reliable, automated communication between...
Read More
£43.96
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

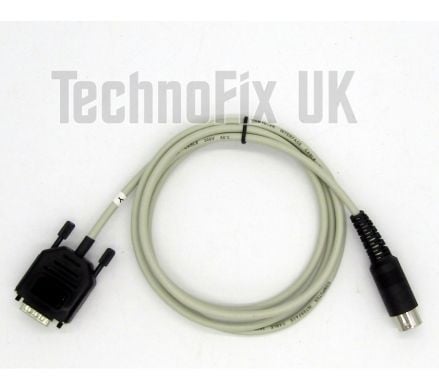

Premium quality shielded cable – Approx. 1.5m / 4ft 10in in length.

The ACM8PHSYSU-B cable provides reliable, automated communication between supported Yaesu transceivers and Acom 'S' series linear amplifiers, enabling hands-free band switching, PTT synchronization, and remote power control.

  • DE15 male plug connects to the CAT/AUX socket on the Acom amplifier

  • 8-pin DIN plug connects to the Band Data socket on supported Yaesu radios

Compatible Acom 'S' Series Amplifiers:

  • Acom 500S

  • Acom 600S

  • Acom 700S

  • Acom 1200S

  • Acom 2020S

Compatible Yaesu Transceivers:

  • Yaesu FT-1000

  • Yaesu FT-1000D

  • Yaesu FT-1000MP

  • Yaesu FT-1000MP MkV

  • Yaesu FT-2000 / FT-2000D

  • Yaesu FTdx5000

  • Yaesu FTdx9000


Key Features:

  • PTT (Push-To-Talk) Control
    The amplifier switches to transmit mode in sync with the transceiver and returns to receive automatically.

  • Automatic Band Switching
    Band data from the transceiver allows the amplifier to track and switch to the correct band automatically.

  • Remote Power On/Off
    Turning the transceiver on powers the amplifier on. Powering off the transceiver shuts the amplifier down.


⚠️ Important Notes:

  • This cable uses Band Data control (via BCD or voltage levels).

  • Not suitable for systems using the ACOM 04AT automatic antenna tuner/switch — use the CI-V version instead.

  • Do not use an additional PTT cable — this control cable handles PTT internally. Dual PTT connections may result in improper operation.

Refer to your Acom amplifier's user manual for detailed setup instructions and transceiver configuration requirements.
