Rig Expert MATCH — Upgradeable Antenna & Coax Analyser
SKU Part Number:
MATCH-ANALYSER
Rig Expert MATCH Base — Upgradeable Antenna & Cable Analyser
The Rig Expert MATCH Base model is your gateway to professional-grade antenna and...
Read More
Read More
Special Price
£279.95
Regular Price
£349.96
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599

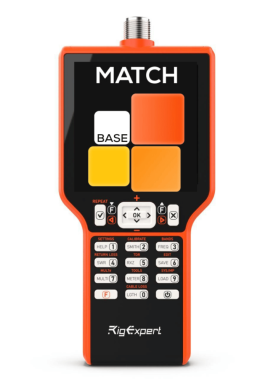

Rig Expert MATCH Base — Upgradeable Antenna & Cable Analyser
The Rig Expert MATCH Base model is your gateway to professional-grade antenna and cable analysis. Covering 0.1–70 MHz right out of the box, it’s the ideal starting point for both hobbyists and seasoned radio operators. With its intuitive interface, vibrant 4.0" colour TFT display, and reliable measurement capabilities, the MATCH Base delivers accurate SWR, return loss, impedance, and more at the push of a button.
Future-Proof Your Setup with Upgrade Cards
As your needs evolve, so can your MATCH Analyser. Two optional physical upgrade cards, posted directly to you, unlock advanced features and expanded frequency coverage—no complicated installations required. Simply insert the card to transform your device and ensure it stays relevant as you tackle more complex antenna and cable projects.
230 MHz Upgrade Licence Card (MATCH-LICENSE-A)
Elevate your MATCH Base from 70 MHz to 230 MHz frequency coverage. Ideal for VHF applications, this upgrade enables advanced measurements including SWR, return loss, impedance, BLE (Bluetooth) connectivity, cable loss, and cable impedance selection. You’ll also gain tools like OSL calibration, multi-chart modes, stub tuning, length vs VF, and convenient quick-band navigation—perfect for those ready to move beyond HF into the VHF spectrum.
500 MHz Upgrade Licence Card (MATCH ANALYSER RFE LICENSE 500MHz)
Push the boundaries even further and extend your analyser’s range up to 500 MHz. Designed for professionals and serious enthusiasts, this upgrade broadens your capabilities into UHF territory. Enjoy precision measurements for SWR, return loss, and impedance across a far-reaching frequency range. Unlock BLE (Bluetooth) and SWR2Air, TDR chart for advanced diagnostics, cable loss and impedance selection, multiple OSL calibration profiles, and additional charting modes. With these enhancements, you’ll be well-equipped for the most demanding antenna and cable analysis tasks.
This versatile analyser offers precise measurements for SWR, return loss, impedance (R, X, Z), and capacitance at single or multiple frequencies. It features a 480x480 colour TFT 4.0” LCD display, providing clear and detailed data for easy interpretation. Whether you're a beginner or a seasoned professional, its user-friendly interface ensures effortless operation, making it the perfect companion for efficient antenna and cable diagnostics.
Built with durability and portability in mind, the MATCH Analyser comes with an N-type output connector, a Li-Ion 2600mAh battery delivering up to 2 hours and 40 minutes of continuous operation, and a compact, lightweight design for field use. Its advanced self-test tools and “Helper” feature streamline diagnostics, ensuring reliable and consistent performance.
MATCH Upgradeable Antenna Analyser Specifications (without extra license)
– Frequency range: 0.1 to 70 MHz and the range can be upgraded
– Self-test
– Factory OSL included
– Display: 480×480 color TFT 4.0” LCD display
– Built-in Helper
– Output power: -10 dBm (at 50 Ohm load)
– Output connector: N-type
– Battery (power): One Li-Ion battery ICR18650, 2600mAh
– Run time: 2 hours 40 minutes (continuous measurements)
– Operating temperature: -10…60 °C (14…140 °F)
– PC/Mobile Interfaces: USB Type-C
– Dimensions: 93 × 207 × 37 mm (3.7 × 8.1 × 1.5 in)
– Weight: 341g (12 oz)
Operation modes:
– R, X chart
– Return loss chart
– SWR at single or multiple frequencies
– SWR chart
– SWR, return loss, R, X, Z, L, C at a single frequency
Specifications for MATCH, base model:
– Frequency range: 0.1 to 70 MHz
– Memory Slots for saving measurements
– Jump to Extremum Value
– Save Measurements
– Load Measurements
– Choosing GUI Language
– Choosing GUI Palette
– Choosing Battery Profile
– Self-test
– Controlling Sound
– Selecting System Impedance
– Choosing Metric/Imperial Units
– Choosing IARU Regions
– Setting the Cable Velocity Factor
– Setting Frequency Correction Factor
– Factory Reset
– Clearing Saved Charts
Display modes:
– SWR chart
– RX chart
– Return Loss Chart
Table modes:
– SWR meter
– MultiSWR Meter
– R, X,Z,L,C, Loss, Phase meter
Languages:
– English, Ukrainian, Spanish, French, German, Portuguese, Italian
