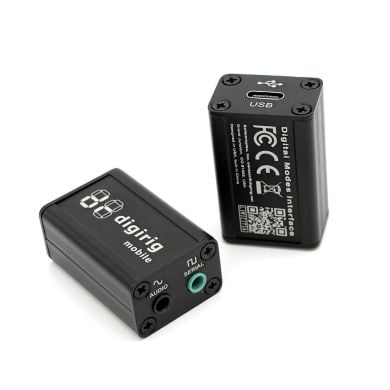

Digirig Mobile Interface + Radio Cable Kit
SKU Part Number: DRMOB
The Digirig Mobile Interface + Radio Cable Kit provides a complete digital modes interface solution for a range of popular Icom, Yaesu, Xiegu,...
Read More
As low as £119.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Product Accessories

The Digirig Mobile Interface + Radio Cable Kit provides a complete digital modes interface solution for a range of popular Icom, Yaesu, Xiegu, Kenwood and Lab599 radios. Each option includes the correct Digirig Mobile interface variant and matching transceiver-side cable kit, allowing you to choose the correct bundle for your radio from the drop-down menu.

The Digirig Mobile combines a USB audio codec, serial CAT interface and PTT switching in one compact aluminium enclosure. It supports full CAT control, including PTT, band control, tuning and other supported radio functions, rather than relying only on VOX-based PTT. A single USB connection to the computer helps reduce cable clutter and makes it suitable for Windows, macOS and Linux systems.

Audio and PTT are always available independently from serial CAT, giving the minimum required configuration for many digital modes with compatible radios. The interface uses a widely supported CP2102 serial interface and CM108 audio codec, appearing as a generic audio device with no additional audio driver normally required.

The Digirig Mobile is well suited to FT8, JS8Call, Winlink, APRS, packet, SSTV and other soundcard-based digital modes, as well as portable, mobile and compact station operation.

Please check the Product Information tab before ordering for full kit details, included cables and radio compatibility. All kits here include the pre-configured Digirig Mobile unit and correct cable kit.

Available Versions

SKU Included Parts Radio Compatibility
DRMOB-ICOMMOBILE DRMOB-CIV + ICOMMOBILE Icom mobile/base radios with 13 pin Mini DIN audio/PTT and 3.5mm TRS CI-V CAT
DRMOB-FT8XXMOBILE DRMOB + FT8XXMOBILE Yaesu FT-8xx series and selected Yaesu mobile radios
DRMOB-G90MOBILE DRMOB + G90MOBILE Xiegu G90, X5105 and G106
DRMOB-ICOMDIN8KIT DRMOB-CIV + ICOMDIN8KIT Icom radios using DIN8 audio/PTT and 3.5mm TRS CI-V CAT
DRMOB-KWOODMOBILE DRMOB-RS232 + KWOODMOBILE Selected Kenwood radios using RS-232 CAT and DIN-13 audio/PTT
DRMOB-TX500MOBILE DRMOB-TX500 + TX500MOBILE Lab599 TX-500

General Digirig Mobile Features

  • Combines USB audio codec, serial CAT interface and PTT switch
  • Supports full-featured CAT control, including PTT, bands and tuning where supported by the radio
  • Uses a single USB connection to the computer to reduce cable clutter
  • Compatible with Windows, macOS and Linux
  • Open-collector PTT switch controlled by the RTS signal of the COM port
  • Audio and PTT available independently from serial CAT
  • Uses CP2102 serial interface and CM108 USB audio codec
  • Compact rugged aluminium enclosure
  • Uses 3.5mm TRRS radio interface connections for simple cable support
  • Suitable for many digital modes and computer-controlled radio applications
  • Isolation can be added with a suitable USB isolator if required

Important Note

Please check the selected kit carefully before ordering. Each bundle includes a specific Digirig Mobile interface version and cable set for the radio family shown. Radio compatibility, CAT support and PTT behaviour may vary depending on the transceiver model, software settings and operating system. CAT configuration is set using solder jumpers and cannot be changed operationally. Please select the correct kit for your radio before ordering.

Kit Details and Compatible Radios

DRMOB-ICOMMOBILE - Icom Mobile Cable Kit

Includes DRMOB-CIV + ICOMMOBILE.

This kit is designed for compatible Icom radios using a 13 pin Mini DIN connector for audio/PTT and a 3.5mm TRS CI-V CAT connector. The coiled cables help prevent knots and kinks, keeping the setup tidy in the shack or in mobile installations.

  • One CI-V CAT serial cable with 3.5mm TRS connector
  • One Audio/PTT cable with 13 pin Mini DIN connector
  • Approximately 61cm (24 inches) relaxed, 183cm (72 inches) fully stretched
  • Shielded and RF choked with ferrite beads on both ends
  • Premium quality materials and construction

Compatible radios include:

  • Icom IC-7000
  • Icom IC-703
  • Icom IC-706
  • Icom IC-706MKII
  • Icom IC-706MKIIG
  • Icom IC-7100
  • Icom IC-718
  • Icom IC-7200
  • Icom IC-78
  • Icom IC-970A
  • Icom IC-970E
  • Icom IC-970H
  • Icom IC-7410
  • Icom IC-9100

DRMOB-FT8XXMOBILE - Yaesu FT-8xx Mobile Cable Kit

Includes DRMOB + FT8XXMOBILE.

This kit provides separate Mini DIN 6 audio/PTT and Mini DIN 8 CAT control cables for compatible Yaesu transceivers. The Mini DIN 6 audio/PTT cable is also compatible with a wide range of transceivers and can be used alone with all models of Digirig interface.

  • One Audio/PTT cable with Mini DIN 6 connector
  • One serial CAT cable with Mini DIN 8 connector
  • Coiled cables help prevent knots and kinks
  • Approximately 61cm (24 inches) relaxed, 183cm (72 inches) fully stretched
  • Short cable approximately 46cm (18 inches)
  • Shielded and RF choked with ferrite beads on both ends
  • Premium quality materials and construction

Compatible radios include:

  • Yaesu FT-100
  • Yaesu FT-100D
  • Yaesu FT-100DE
  • Yaesu FT-100DR
  • Yaesu FT-1500
  • Yaesu FT-1500M
  • Yaesu FT-7100
  • Yaesu FT-7100M
  • Yaesu FT-7800
  • Yaesu FT-7800E
  • Yaesu FT-7800R
  • Yaesu FT-7900R
  • Yaesu FT-8000
  • Yaesu FT-8000R
  • Yaesu FT-8100
  • Yaesu FT-8100M
  • Yaesu FT-8100R
  • Yaesu FT-817
  • Yaesu FT-817ND
  • Yaesu FT-818
  • Yaesu FT-818ND
  • Yaesu FT-8500
  • Yaesu FT-857
  • Yaesu FT-857D
  • Yaesu FT-8800
  • Yaesu FT-8800E
  • Yaesu FT-8800R
  • Yaesu FT-8900
  • Yaesu FT-8900R
  • Yaesu FT-891
  • Yaesu FT-897
  • Yaesu FT-897D

Important note for Yaesu FT-891 users: only the Audio/PTT side of this kit can be used with the FT-891. For full integration, please see the Digirig DR-891 option.

DRMOB-G90MOBILE - Xiegu G90, X5105 and G106 Cable Kit

Includes DRMOB + G90MOBILE.

This kit provides a complete set of transceiver-side Digirig Mobile cables for compatible Xiegu radios.

  • One serial CAT cable with 3.5mm TRS connector
  • One Audio/PTT cable with Mini DIN 8 connector
  • Coiled cable helps prevent knots and kinks
  • Approximately 61cm (24 inches) relaxed, 183cm (72 inches) fully stretched
  • Shielded and RF choked with ferrite beads on both ends
  • Premium quality materials and construction

Compatible radios include:

  • Xiegu G90
  • Xiegu X5105
  • Xiegu G106

Important note for recent Xiegu G90 revisions: there has been a report of the bracket or handle interfering with the serial connection. Widening the opening with a file or removing the handle can address this issue.

DRMOB-ICOMDIN8KIT - Icom DIN8 Cable Kit

Includes DRMOB-CIV + ICOMDIN8KIT.

This kit is designed for Icom transceivers using DIN8 audio/PTT and 3.5mm TRS CI-V CAT connections.

  • One DIN8 Audio/PTT cable
  • One 3.5mm TRS CI-V serial cable
  • Coiled cables help prevent knots and kinks
  • Approximately 61cm (24 inches) relaxed, 183cm (72 inches) fully stretched
  • Shielded and RF choked with ferrite beads on both ends
  • Premium quality materials and construction

Compatible radios include:

  • Icom IC-275
  • Icom IC-275A
  • Icom IC-275E
  • Icom IC-275H
  • Icom IC-707
  • Icom IC-721
  • Icom IC-725
  • Icom IC-726
  • Icom IC-728
  • Icom IC-729
  • Icom IC-732
  • Icom IC-735
  • Icom IC-736
  • Icom IC-737
  • Icom IC-738
  • Icom IC-7400
  • Icom IC-746
  • Icom IC-746PRO
  • Icom IC-756
  • Icom IC-7600
  • Icom IC-761
  • Icom IC-765
  • Icom IC-7700
  • Icom IC-775
  • Icom IC-7800
  • Icom IC-781
  • Icom IC-820
  • Icom IC-820H
  • Icom IC-821
  • Icom IC-821H
  • Icom IC-910H
  • Icom IC-911
  • Icom IC-911D
  • Icom IC-970
  • Icom IC-M710

Important note: some transceiver models, such as the Icom IC-746PRO, use separate accessory connections for different bands. The audio cable in this kit interfaces with the accessory port for HF/50MHz. If a Mini DIN 6 port is also present, use a matching cable for VHF/UHF modes.

DRMOB-KWOODMOBILE - Kenwood Mobile Cable Kit

Includes DRMOB-RS232 + KWOODMOBILE.

This kit is designed for compatible Kenwood radios using RS-232 CAT control and DIN-13 audio/PTT.

  • One serial RS-232 CAT cable with DB9 connector
  • One Audio/PTT cable with DIN-13 connector
  • Coiled cable helps prevent knots and kinks
  • Approximately 61cm (24 inches) relaxed, 183cm (72 inches) fully stretched
  • Shielded and RF choked with ferrite beads on both ends
  • Premium quality materials and construction

Compatible radios include:

  • Kenwood TS-140S
  • Kenwood TS-2000
  • Kenwood TS-2000X
  • Kenwood TS-570
  • Kenwood TS-570D
  • Kenwood TS-570DG
  • Kenwood TS-570S
  • Kenwood TS-570SG
  • Kenwood TS-590S
  • Kenwood TS-590SG
  • Kenwood TS-870
  • Kenwood TS-950
  • Kenwood TS-990

DRMOB-TX500MOBILE - Lab599 TX-500 Cable Kit

Includes DRMOB-TX500 + TX500MOBILE.

This kit is designed for the Lab599 TX-500 and provides the required Digirig Mobile interface and cable set for CAT and audio connection.

  • One serial CAT cable with 3.3V power using GX12-4 connector
  • One audio cable using GX12-7 connector
  • Coiled cable helps prevent knots and kinks
  • Approximately 61cm (24 inches) relaxed, 183cm (72 inches) fully stretched
  • Shielded and RF choked with ferrite beads on both ends
  • Hardware PTT line in audio cable allows single-cable operation
  • Digirig includes capacitors on the audio lines as required by the TX-500
  • Premium quality materials and construction

Compatible radio:

  • Lab599 TX-500

Important note: compatibility with the newer TX-500MP is currently unknown.
