Product Information

ParaPro EQ20B-DSP

Introducing the ParaPro EQ20B-DSP, a compact 20W audio enhancer with parametric equalisation and Bluetooth input. Tailor your audio with precision using parametric equalisation to suit personal hearing preferences. This device features a 10W per channel audio amplifier, dual-channel DSP noise cancelling (9 to 40dB), and Bluetooth connectivity, ensuring an optimal and adaptable listening experience. Connect mono or stereo inputs, and choose output options for passive speakers. The EQ20B-DSP's user-friendly controls, compact design, and advanced features make it an efficient solution for individuals with hearing loss.

SHAPE YOUR AUDIO TO SUIT YOUR EARS!

Greatly improved audio for those with hearing loss

Precise audio adjustment for your own hearing

The bhi ParaPro EQ20B-DSP 20 watt audio unit comes with parametric equalisation, bhi's world-class DSP noise cancelling technology and Bluetooth. The parametric equalisation allows you to fine-tune the sound of your audio and boost or cut the frequencies to suit your own hearing and conditions.

Latest bhi DSP Noise cancelling Technology

The EQ20B-DSP unit features a 10W per channel audio amplifier with Bluetooth, parametric equalisation and bhi’s latest dual Channel DSP noise cancelling technology to give you an even better "noise free" listening experience.

Mono or Stereo inputs

You can connect one or two mono inputs to the CH1 and CH2 input sockets, or a stereo signal from an SDR radio, shortwave receiver, MP3 player etc, via the stereo input socket.

Choice of outputs and connections

Connect passive speakers to the left and right “Speaker Outputs” using the 4mm banana plugs or phono to 3.5mm mono adapters supplied. Use the “Source Select” button on the front panel to select the desired audio.

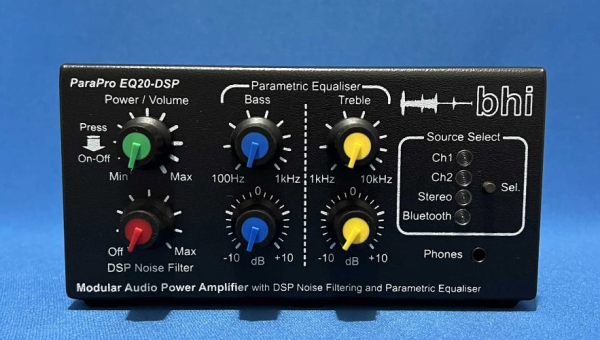

Easy to use audio controls

The EQ20B-DSP is housed in a quality compact ABS case. There are controls for Power/Volume along with two parametric equaliser channels labelled Bass and Treble, with the Bass centre frequency being adjustable from 100Hz to1kHz and Treble covering 1kHz to 10kHz. Used together these controls provide two bands of ±10dB adjustment from 100Hz through to10kHz.

bhi DSP noise cancelling

The fully adaptive DSP noise cancelling filter can be adjusted from to 9 to 40dB enabling you to change the filter setting in "real time" to suit your current conditions.

Benefits of Parametric Equalisation

Unlike standard tone controls, graphic equalisation and preset EQ settings a parametric equaliser allows you to select the precise frequency you want to adjust. This enables you to boost or cut the selected frequency giving you much greater flexibility and accuracy in setting the audio to suit your own hearing. This is especially beneficial to people with hearing loss.

Bluetooth connectivity

Built-in Bluetooth connectivity on the input effectively turns the EQ20B-DSP into a Bluetooth speaker allowing audio playback through the unit from a Bluetooth audio source like an MP3 player or Bluetooth enabled radio to the passive speakers connected to the rear of the unit.

Features

Parametric equalisation for precise audio adjustment
10W audio per channel
Class-D type audio amplifier for power efficiency
bhi dual channel DSP noise cancelling technology 9 to 40dB
Bluetooth on the input
Ultra low latency of 38mS
Signal input overload feature
Greatly benefits those with hearing loss
Simple control of all functions
4mm banana plug or RCA phono plug audio output connections
3.5mm stereo headphone output (Class AB)
12V DC operation (2A)
User manual and full accessory kit supplied
Two separate 3.5mm mono inputs or a single stereo audio input
Use with 4 or 8 ohm passive speakers
Dims: 145mm (W) x 75mm (H) X 100mm (D)

Testimonials

“Easy-to-use device that improves the audio clarity of amateur signals” EQ20B-DSP QST Dec 2019 review

"I have a Dual In-line module which is very good for eliminating noise. The EQ20B-DSP is first class and really does improve the audio and noise cancelling signals can be fine-tuned. I am now hearing all calls much clearer. Heavy accents are no longer a problem" - EQ20B-DSP review by Peter Joyner M0WPJ

"Using the new EQ20-DSP noise cancelling and parametric equaliser for a few days I have found this to be an excellent purchase. I am now able to receive stations down in my local noise level which was not possible before due to high solar panel and other local electronic noise. Using the fixed line level output from my ICOM IC7600 and IC9100 transceivers thus bypassing the internal audio stages gives the best results. (4.7K 300mV rms) this source is just below the clipping level, the audio having little or no distortion with a frequency range to suit me. Many thanks to Kellie and Graham for the very fast and efficient service." - Best Wishes David G2FT ex G3MWV

Download ParaPro EQ20-DSP Manual ISSA
