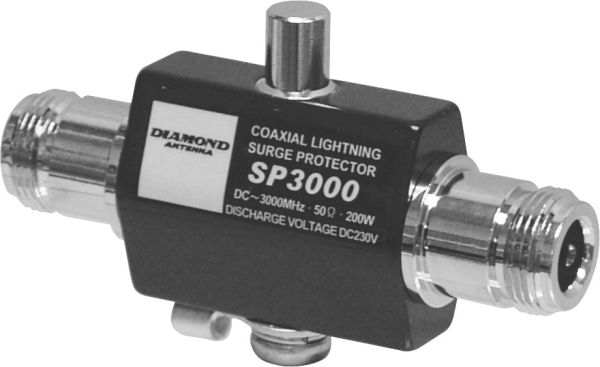

Diamond SP-3000
SKU Part Number: SP-3000
Specifications:Frequency:DC – 3,000 MHzSWR:less than 1.1Insertion Loss:less than 0.2 dBMax Power Rating:200w PEPConnector:Type N female –...
Read More
£29.95 £24.96
Availability: In stock

Seen this product cheaper elsewhere?

Call 0345 2300 599
Frequency:DC – 3,000 MHz

SWR:less than 1.1

Insertion Loss:less than 0.2 dBMax

Power Rating:200w PEP

Connector:Type N female – Type N female

Impulse Wave Discharge Voltage:1000v

Impulse Wave Discharge Capacity:6000A

Impulse Wave Retention Discharge Capacity:DC230v ± 20%

Insulating Resistance DC100v:Over 10,000M ohms

Weight:0.25 lbs. / 113g

Dimensions:3.1"x1.6"x0.8" / 78Wx41Hx20D mm
