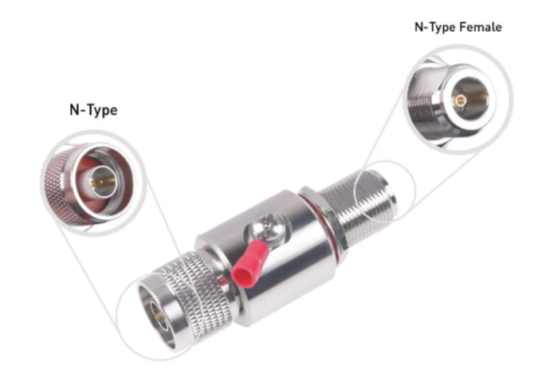

RF Explorer RFEA-1 Lightning Arrestor 3GHz Connectors N Male/Female
SKU Part Number:
306050590
Features
Low signal losses
Wide range of frequency applications
Reliable quality
Long work expectation
Description
Arrestors...
Read More
Read More
£34.96
£29.13
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599Features
- Low signal losses
- Wide range of frequency applications
- Reliable quality
- Long work expectation
Description
Arrestors are security devices for securing the transceivers from the over-voltage and current induced by bolts of lightning. We strongly recommend that the arrestors are being installed in the external lightning protection system to avoid possible damage to your LoRa devices caused by over-voltage and strong current flow induced by bolts of lightning.
Specification
Impedance | 50 ohm |
Frequency Range | 0-3000 MHz |
VSWR | ≤1.2 |
Insertion Loss | ≤0.3 dBi |
Nominal DC Spark-Over voltage(100V/µs) | 230±20% |
Maximum impulse Spark-over voltage(1kV/µs) | 650V |
Nominal discharge current(Imax)(8/20µs) | 20KA |
Impulse discharge current(10/1000µs,300times) | 100A |
Connects port | N-Male/Female |
Working temperature | -65C°~+165C° |
Part list
- 1x arrestors
ECCN/HTS
HSCODE | 8535400000 |
UPC |
