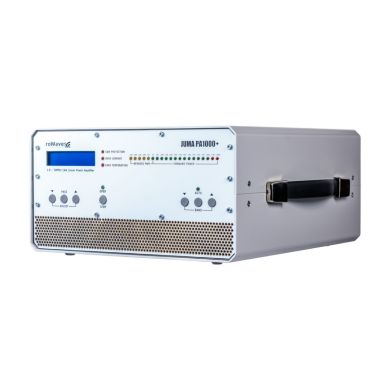

main product photo
JUMA PA1000+ - 1000W LINEAR AMPLIFIER FOR HF and 6
SKU Part Number: JUMA-PA1000-PLUS
JUMA PA1000+ is a high-performance 1kW PEP linear amplifier for HF + 6m. It is fully assembled, tested & calibrated, small-size (only 5.5kG /...
Read More
Finance from £87.7 a month
£3,300.00 £2,750.00
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

JUMA PA1000+ is a high-performance 1kW PEP linear amplifier for HF + 6m. It is fully assembled, tested & calibrated, small-size (only 5.5kG / 12lbs) with digital control. Designed by the JUMA® team (OH2NLT & OH7SV) and manufactured, assembled, and tested.



Main features PA1000+ version):

  • output power nominal 1000W+, PEP (600W PEP on 6m)
  • silent cooling fan (Noctua Fan) noise: (19.3dBA)
  • enhanced cooling with larger heatsink (compared to JUMA 1000)
  • more rugged high-power LDMOS inside (ART2K0FE) in Plus (+) version
  • FT8 & digital modes: 700W with ant. SWR 1:1 (! please set low PA voltage 42…45Vdc, see User Manual !/ current 20Adc or below) | 500W or less with ant. SWR 1:2 (low PA voltage set 42Vdc / current 20Adc or below). For FT4 mode, the power limits are higher.
  • operating bands: all HF bands, including WARC bands and 6 meter
  • power supply: switchable 115/230VAC included
  • built-in 12V PSU (to supply your QRP TRx from JUMA PA1000+ directly)
  • type N, UHF, or BNC connector let us know when you order
  • STBY power consumption: only 5W from the power supply
  • adjustable gain: (5W…25W drive)
  • protection and optical alarm: in case of over-temperature, over-current, or exceeded SWR
  • IMD3 (average value from 20+ units measured): -34.7dBc typ. @950W (3.5MHz) | -35.1dBc typ. @900W (14MHz) | -33dBc typ. @350W (51MHz) – see results below at “Technical data”
  • low harmonics distortion, -55dBc typ. below fundamental
  • very good input matching, SWR< 1.5 all bands, HF to 6m
  • output adjustable gain: in 1dB steps, G1 to G8
  • automatically band selection: possible for BCD, RS232, C-IV and analogue band voltage
  • latest FW version: 1.35
  • LCD display for band, gain, SWR, voltage, current and temperature
  • LED bar display for forward and reverse RF power
  • temperature-controlled fan speed, fully silent after cooling down
  • carry handle included
  • free remote Windows application included
  • it can be interfaced with JUMA COM Hub
  • it can be interfaced with JUMA IC-705 Bluetooth Gateway
  • small size: W x H x D, 260 x 135 x 300mm
  • ultra light weight: 5.5kg (12lbs)
  • two years warranty and 1 (one) year for MOSFET
