Call 0345 2300 599Xiegu G7250
Split-type direct-sampling SDR transceiver with a separate 7-inch touchscreen controller, up to 100W output, built-in automatic antenna tuner and comprehensive digital signal-processing tools.
We are now accepting pre-orders for the Xiegu G7250. Place your order today to secure your position for the first batch arriving from the factory. We do not yet have a confirmed delivery date and will update this page as soon as further information becomes available.

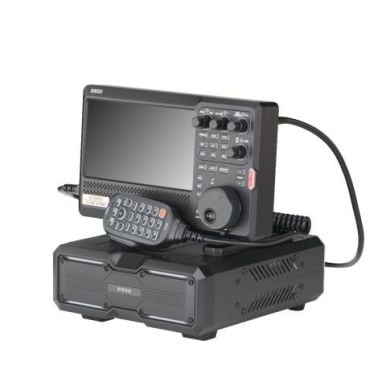

The new Xiegu G7250 is a split-type HF and 50MHz SDR transceiver built around a direct RF-sampling architecture. The separate controller and RF deck can be installed independently, making the radio particularly flexible for both fixed and mobile-style installations.
It covers 0.5-30MHz and 50-54MHz, supports SSB, CW, NFM, AM and DIG modes, and delivers up to 100W on HF and 90W on 50MHz.
A built-in automatic antenna tuner, spectrum scope, waterfall display, adjustable digital filters, digital noise reduction, voice recording and preset CW messages combine to make the G7250 a highly capable modern station transceiver.
Direct RF-sampling architecture with dedicated baseband and RF sections.
Full-power HF operation with up to 90W available on the 50MHz band.
17.8cm capacitive display with touchscreen operation and physical controls.
20-150Ω stated matching range with per-band tuning memory.
Separate Controller and RF Deck
The G7250 combines a separate display and control head with a dedicated main RF unit. The two sections can be deployed independently, providing greater flexibility when arranging a station or installing the radio where operating space is limited.
7-inch Touchscreen with Physical Controls
The detachable controller features a 17.8cm high-resolution capacitive touchscreen together with a full complement of physical controls.
A spectrum scope and waterfall display provide a clear visual representation of activity across the selected frequency range.
DSP Tools for Everyday Operating
Adjustable digital filters are joined by digital noise reduction, Noise Blanker and Noise Threshold functions to help tailor reception to changing band conditions.
The G7250 also includes voice recording and playback, preset CW Morse code messages and remote baseband signal transmission over a network.
Fast Tuning with Band Memory
The internal ATU has a stated matching range of 20-150Ω. Tuning data is stored for each band and automatically recalled when returning to a previously tuned band. Initial tuning is specified at 10 seconds or less, with memory tuning specified at 0.1 seconds or less.
Xiegu G7250 Highlights
- Direct RF-sampling SDR architecture
- 0.5-30MHz and 50-54MHz coverage
- SSB, CW, NFM, AM and DIG operating modes
- 100W HF output and 90W on 50MHz
- Separate controller and RF deck
- 17.8cm high-resolution capacitive touchscreen
- Spectrum scope and waterfall display
- Adjustable digital filters
- Digital noise reduction
- Noise Blanker and Noise Threshold functions
- Voice recording and playback
- Preset CW message calling
- Built-in automatic antenna tuner with band memory
- Remote baseband signal transmission over a network
Xiegu G7250
Transceiver
Published Receiver Performance
Published Transmit Specifications
Internal ATU
Display and DSP Functions
- 17.8cm high-resolution capacitive touchscreen
- Physical front-panel controls
- Spectrum scope
- Waterfall display
- Adjustable digital filters
- Digital noise reduction
- Noise Blanker
- Noise Threshold function
- Voice recording and playback
- Preset CW Morse code messages
- Remote baseband signal transmission over a network
Xiegu GY-10 external speaker.
Product information and specifications are preliminary and may be changed by Xiegu before production units are released.
