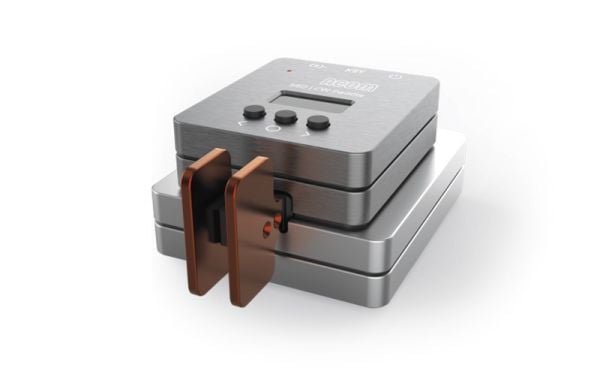

ACOM 560 | CW Paddle - Delivery ETA: 2026
SKU Part Number:
ACOM 560
Price TBC
EUROPEAN PREMIEREThe ACOM 560 | CW Paddle is a completely NEW PRODUCT, which was showcased to European customers for the first time...
Read More
Read More
£0.00
Availability: Out of stock
Seen this product cheaper elsewhere?
Call 0345 2300 599Price TBC
EUROPEAN PREMIERE
The ACOM 560 | CW Paddle is a completely NEW PRODUCT, which was showcased to European customers for the first time at the HAM Radio Friedrichshafen 2025 exhibition, which took place from June 27 to 29 2025, in Germany.
PRELIMINARY INFORMATION
Application
The ACOM 560 CW Paddle makes using Radiotelegraphy and Morse code easy.
Innovation and Quality
ACOM presents its breakthrough in telegraphy paddles, introducing the 560 CW Paddle model. The paddle is based and manufactured using state‑of‑the‑art technologies, demonstrating ACOM's well-known innovative spirit and quality.
Advantages
No more moving parts inside the device that cause mechanical problems. The ACOM 560 CW Paddle uses tension sensors to detect operator pressure on the levers.
No more health problems with your fingers and hands. The ACOM 560 CW Paddle activating tension force can be adjusted from 5 grams only to 60 grams. The tension force is freely defined for every lever individually and memorized in 5 setting groups.
No more unnecessary noise. The silence is what you dream of. And the ACOM 560 CW Paddle will give it to you.
The ACOM 560 CW Paddle uses a microcomputer with an LCD screen. This means you have menu-driven intelligent control functions, as is common with all ACOM products.
Easy to use
The ACOM 560 CW Paddle keying technique is the same as keying with a mechanical paddle. The operator will easily adapt his keying style to it and, as a result, will increase its maximum keying speed. The paddle weight of 1.05 kg (2.3 lbs) makes the device virtually stationary while keying, and you will enjoy your transmission.
No Service Needed
Since there are no mechanical moving parts, the ACOM 560 CW Paddle does not require the maintenance typical of mechanical devices. The tension sensors' calibrating procedure is fully automatic.
Brochures & Manuals
ACOM 560AR PRELIMINARY Brochure | March 2025 | PDF file
ACOM Product Catalog | October 2023 | PDF file
PRELIMINARY INFORMATION
Electronics design
- The ACOM 560 CW Paddle uses tension sensors to detect operator pressure on the levers and a microcomputer with an LCD screen for intelligent control functions;
Mechanical Design
- Aluminum body, stainless steel base, and aluminum levers - all anodized in ACOM style;
Power Supply
- Integrated Accu lithium-polymer battery (LP803040, 3.7 V, 1000 mAh, 3.7 Wh);
- Through integrated USB-C port;
Work Modes
- Work mode with lighting screen with only 22.76 mA nominal current consumption;
- Sleep mode (energy saving) with only 0.15 mA consumption;
Transceiver Connection
- Through standard shielded audio cable (3.5 mm stereo plug for CW Paddle 560);
Size & Weight (operating, excluding connected cables)
- WxDxH: 75x115x50 mm, 1.05 kg (3.0x4.5x2.0 inches, 2.3 lbs.).
Brochures & Manuals
ACOM 560AR PRELIMINARY Brochure | March 2025 | PDF file
ACOM Product Catalog | October 2023 | PDF file
