CW Morse Lightweight Single Paddle Morse Key (8 Colours Available)
SKU Part Number: CW-38-0
The CW Morse 38 Series is a lightweight single arm iambic paddle designed for smooth, fast and reliable CW operation. Compact enough for portable use...
Read More
As low as £42.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The CW Morse 38 Series is a lightweight single arm iambic paddle designed for smooth, fast and reliable CW operation. Compact enough for portable use but solid enough for the shack, it is a great choice for QRP operators, field stations and anyone wanting a responsive single paddle key.

The dual grip single paddle arm runs on two precision self-lubricating ball bearings, giving a smooth action with minimal friction. Solid brass contacts provide dependable keying, while stainless steel hardware, soldered copper wire connections and adjustable gap settings make the key practical for regular use.

Both left and right side gaps can be adjusted independently, allowing the operator to set the paddle feel to their preference. It connects using a standard 3.5mm stereo audio cable, with tip for dit, ring for dah and sleeve for common.

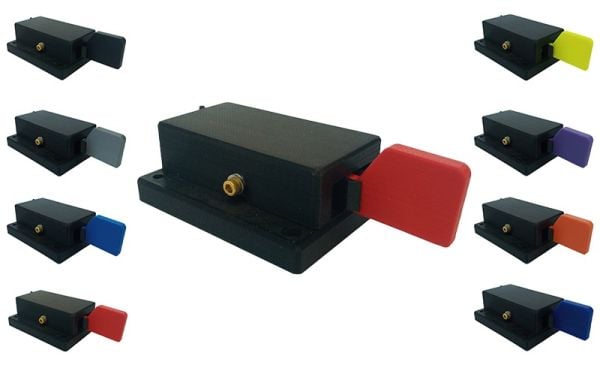

Available Colours

Part Number Colour
CW-38-000 Black
CW-38-002 Blue
CW-38-005 Yellow
CW-38-006 Purple
CW-38-007 Indigo
CW-38-008 Orange
CW-38-810-0 Red
CW-38-890-0 Grey

Key Features

  • Lightweight single arm iambic Morse paddle
  • Dual grip paddle design
  • Smooth action via two precision self-lubricating ball bearings
  • Solid brass contacts for reliable keying
  • Stainless steel hardware
  • All soldered copper wire connections
  • Adjustable left and right gap settings
  • Standard 3.5mm stereo audio connection
  • Compact size for shack or portable use
  • Made in the USA
  • Available in eight colours

Specifications

  • Product type: Lightweight single paddle Morse key
  • Series: CW Morse 38 Series
  • Dimensions: 3.96 inch (~10cm) x 2.20 inch (~5.5cm) x 1.29 inch (~3.5cm)
  • Connection: 3.5mm stereo audio receptacle
  • Keying: Tip, dit. Ring, dah. Sleeve, common.
  • Contacts: Solid brass
  • Bearings: Two precision self-lubricating ball bearings
  • Hardware: Stainless steel
  • Adjustment: Left and right paddle gap adjustment
