Armoloq MBS-1280/F – Manpack Battery System for TPA-FTX1 & TPA-705F
Compatible with the Armoloq TPA-705F and TPA-FTX1 only. For other radios please see the standard Armoloq MBS-1280
Note: Some images may include optional accessories or radios not included in this package. Please refer to the description below for the complete contents.
The Armoloq MBS-1280/F is a rugged, field-ready manpack battery system designed to provide reliable portable power for radios mounted in either the Armoloq TPA-705F or Armoloq TPA-FTX1 platforms. Built around the proven UB1280 battery footprint, it features a fully enclosed, durable battery compartment that mounts directly to the rear of the TPA, transforming your radio into a self-contained manpack system for off-grid, expedition, or tactical operation. The hinged battery compartment folds to act as an adjustable stand, angling the radio for improved visibility and comfort during desktop or field use.
Constructed from formed Kydex (2.1 mm cover, 2.3 mm compartment) and finished with a 5052 aluminium mounting plate, the MBS-1280/F provides exceptional protection against impact and environmental exposure, all while maintaining a compact and lightweight form.
When powered from the MBS-1280/F, both supported radios are capable of operating at their full 10 W output power rather than being limited to internal battery capacity. This allows the Icom IC-705 to transmit at 10 W instead of 5 W, and the Yaesu FTX-1 to transmit at 10 W instead of 6 W, significantly improving performance, signal reach, and operational endurance in the field.

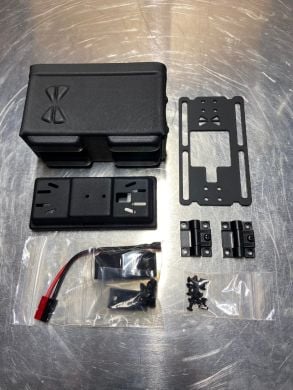

Package Includes
-
FTX-1/IC-705 adapter plate with hardware – 1
-
Battery compartment – 1
-
Battery cover – 1
-
Strap – 1
-
F2 to Anderson Powerpole cable, 180 mm [7 in] – 1
-
M-APP with mounting hardware – 1
-
M4 screw, washer, and nut – 6
-
Adjustable hinges – 2
-
Adjustable hinge mounting hardware – 8
Note: You will need to supply your own short power cable with a Powerpole termination for connecting to the MBS.
Battery Compatibility
Designed for UB1280-size LiFePO₄ batteries. Ensure your chosen battery matches these dimensions:
-
Length: 151 mm [5.94 in]
-
Depth: 65 mm [2.56 in]
-
Height: 96 mm [3.78 in]
-
Weight (with typical 10 Ah battery): 1.6 kg [3.53 lbs]
Materials and Construction
-
Battery Compartment: 2.3 mm [0.09 in] formed Kydex
-
Battery Cover: 2.1 mm [0.08 in] formed Kydex
-
Mounting Plate: 5052 aluminium
-
Finish: Powder coat, matte black
Key Benefits
-
Enables full 10 W transmit power (compared to 5 W on the IC-705 and 6 W on the FTX-1 internal batteries)
-
Provides a rugged, enclosed battery compartment for UB1280-type LiFePO₄ batteries
-
Designed for seamless integration with both the TPA-705F and TPA-FTX1
-
Delivers excellent protection to your battery against impact and environmental exposure
-
Compact, lightweight, and modular for easy transport and deployment
