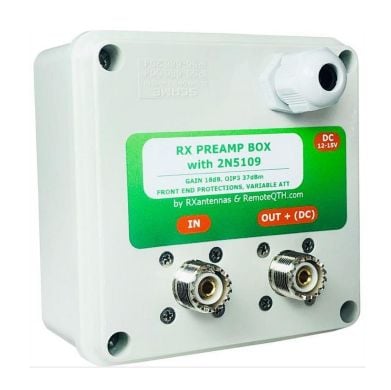

QRO.cz RX Preamp Module
SKU Part Number: QRO-RXABOX
The QRO.cz RX Preamp Module from QRO.cz is a high dynamic range receive preamplifier designed specifically for receive-only antenna systems....
Read More
£102.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The QRO.cz RX Preamp Module from QRO.cz is a high dynamic range receive preamplifier designed specifically for receive-only antenna systems. Featuring the rugged 2N5109 transistor and based on the proven design by W7IUV, this preamp is ideal for enhancing weak-signal performance on low-noise RX antennas.

Perfect for:

  • Beverage antennas

  • Double Half Delta Loops

  • Flag antennas

  • Loops-on-ground

  • Other dedicated receive antenna designs

Whether you're chasing DX or operating in a high-RF contest environment, this module delivers clean, adjustable gain with exceptional linearity.


Built for Serious Receive Performance

The QRO.cz RX Preamp Module is engineered for operators who demand:

  • High dynamic range

  • Strong-signal immunity

  • Adjustable gain control

  • Reliable fail-safe operation

  • Flexible installation options

With its 2N5109 transistor core, adjustable bias control, and automatic bypass relays, this preamp is a robust, field-ready solution for improving receive performance on any dedicated RX antenna system.

Reference the IN port is for the antenna and the OUT port is for the receiver



Key Features

High Dynamic Range Performance

  • Up to 18 dB of adjustable gain

  • Real IP3 of 37 dBm

  • Output power up to 26 dBm

  • Excellent strong-signal handling and low intermodulation distortion

Designed to maintain signal clarity even in crowded band conditions.


User-Adjustable Gain & Bias

  • Built-in variable attenuator allows gain adjustment from 0–18 dB

  • Multi-turn potentiometer for precise transistor bias tuning

  • Fine control lets you optimize performance for your specific antenna and RF environment


Automatic Dual-Relay Bypass

Two internal relays automatically switch the unit into bypass mode when power is removed, ensuring:

  • Fail-safe operation

  • No signal loss if power is interrupted

  • Seamless integration into receive antenna systems


Flexible Power Options

Operate the RX Preamp Module via:

  • Direct 12–15 VDC external connection

  • Bias tee (power over coax)

This flexibility allows easy installation at the antenna feedpoint for improved noise performance and reduced feedline loss.


Technical Specifications

  • Frequency Range: 0.1–30 MHz (Broadband HF coverage)

  • Gain: Adjustable 0–18 dB

  • Impedance: 50 Ohm

  • IP3 Rating: 37 dBm @ 18VDC / 90 mA

  • Output Power: Up to 26 dBm

  • Power Supply: 12–15 VDC (direct or via coax)

  • Current Draw: Up to 180 mA (including relays)

  • RF Connectors: SO-239 (UHF female)

  • Protection: Jumper-selectable front-end diode protection

  • Bypass: Dual-relay automatic bypass when unpowered

  • Assembly: Fully assembled and tested SMD version

  • Enclosure Rating: IP56

  • Dimensions: 3.94 x 3.94 x 1.97 in (100 x 100 x 50 mm)

  • Weight: 0.75 lb (0.34 kg)
