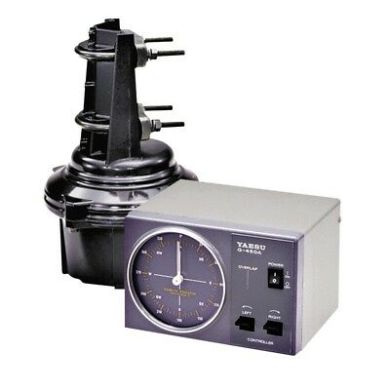

The Yaesu G-450CDC is a light to medium-duty antenna rotator, ideal for entry-level installations, VHF antenna systems, and lightweight HF tribanders.
Designed for smooth and reliable antenna rotation, the G-450CDC features a clear compass-style controller display, a quiet gear reduction system, and a practical quick-disconnect plug system for added safety during lightning conditions.
This rotator is supplied with the required rotator plugs included.
Key Features
- Light to medium-duty antenna rotator
- Ideal for VHF antenna systems and lightweight HF tribanders
- Supplied with rotator plugs included
- Compass-style controller display
- Configurable North/South stop
- Quiet gear reduction system for smooth, low-noise operation
- Advanced locking/braking mechanism
- Quick-disconnect plug system for lightning safety
- Durable construction with corrosion-resistant coating
- Suitable for mast diameters from 32mm to 63mm
Important Mounting Note
Please note: If you wish to mount this rotator directly onto a pole, you will need the Yaesu GC-038 mast clamp, which is sold separately.
Normal Rotator Noise
All Yaesu rotators use an advanced locking and braking mechanism. If you shake the body of the rotator, you may hear a slight rattle from inside the unit.
This is perfectly normal. The design helps prevent damage to the rotator gears caused by antenna inertia when the antenna comes to a stop.
Recommended Accessories
- Yaesu GC-038 mast clamp – required if mounting the rotator directly onto a pole
- Yaesu pre-made rotator cable - available in 25m or 40m with plugs already fitted
- Messi & Paoloni CPR-6 - 6 core rotator cable
- Suitable thrust bearing, depending on installation requirements
Important Note
Please ensure that the antenna size, weight, wind load, mast diameter, and installation method are suitable for this rotator before purchase.
For pole-mounted installations, the GC-038 mast clamp is required and sold separately.
Specifications
| Specification | Details |
|---|---|
| Model | Yaesu G-450 |
| Rotator type | Light/medium-duty antenna rotator |
| Rotation torque | 600 kgf-cm / 43 ft-lbs |
| Braking torque | 3000 kgf-cm / 217 ft-lbs |
| Maximum vertical load | 100kg continuous / 300kg intermittent |
| Rotation range | 450° |
| 360° rotation time | Approx. 56-65 seconds |
| Mast diameter compatibility | 32-63mm |
| Rotor dimensions | 186mm diameter x 263mm |
| Rotor weight | Approx. 3.2-3.5kg |
| Controller dimensions | 190 x 125 x 150mm |
| Controller weight | Approx. 2.7kg |
| Power supply | 230V AC |
| Motor voltage | Approx. 20V DC |
| Display | Compass display |
| Braking system | Advanced locking/braking mechanism |
| Plug system | Quick-disconnect plug |
Package Includes
- 1 x Yaesu G-450CDC antenna rotator
- 1 x Controller unit
- Rotator plugs to fit onto a 6 core cable of your choice
