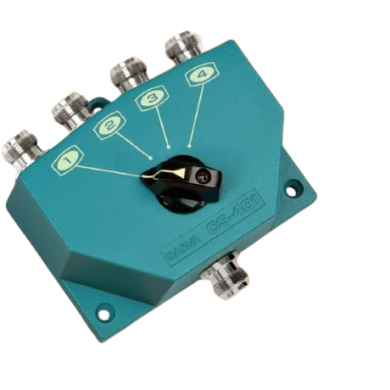

Daiwa CS-401G N-Type 4-Way Coax Switch Low Loss, High Isolation
SKU Part Number: CS-401G
About DAIWA CS-401G 4 Way N-Type Coax Switch Technical Features: This rotary Switch has well-arranged input and output connectors, making it...
Read More
£119.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

About DAIWA CS-401G 4 Way N-Type Coax Switch

Technical Features:

  • This rotary Switch has well-arranged input and output connectors, making it easy to see the connection positions.
  • This unique switching mechanism provides high isolation between circuits.
  • The inactive antenna side is designed to always be grounded, allowing for stable and efficient switching.
  • If any of the four positions have an unused port, selecting that port during a thunderstorm can prevent damage to the radio from lightning. However, selecting this port will not prevent damage to the radio if lightning strikes the connected antenna directly.

CAUTION: Do not change the switch while the radio is in the transmitting state. Always check that the radio is in the receiving state before changing the switch. (The switch contacts are all grounded, so doing so is the same as shorting the output circuit of the switch.)

Specifications:

  • Max Power Rating: 2.5KW (PEP), 1KW (CW)
  • Impedence: 50 OHM
  • Insertion Loss: Less than 0.2 dB
  • VSWR: Less than 12:1
  • Frequency Range: DC to 500 MHz
  • Isolation: More than 60dB (200 MHz)
  • Output Port: 4
  • Connector: N-Type
  • Dimensions: 109(W) X 63(H) X 98(D) mm
  • Weight: 0.86 Kg


Daiwa CS‑401G 4‑Way N-Type Coax Switch

The Daiwa CS‑401G 4‑Way N-type Coax Switch is the perfect addition to any amateur radio setup, designed to provide exceptional performance and reliability. This high-quality coax switch allows you to seamlessly switch between multiple antennas or transceivers, ensuring that you can easily connect and disconnect your equipment without hassle.

One of the standout features of the CS‑401G is its low loss design, which guarantees minimal signal degradation as you switch between your devices. This is crucial for maintaining the integrity of your signal, particularly when operating in high-frequency ranges. With this switch, you can rest assured that your communications will remain clear and consistent.

In addition to its low loss capabilities, the Daiwa CS‑401G offers high isolation between ports. This means that when one port is in use, the other ports will not interfere with your signal, providing you with a clean and reliable connection. This feature is particularly beneficial in environments where multiple antennas may be in close proximity, ensuring that you can operate without unwanted interference.

The switch is designed with ease of use in mind. Its robust construction and intuitive layout make it simple to operate, allowing you to switch between your connected devices quickly and efficiently. Whether you are a seasoned operator or a newcomer to the world of amateur radio, you will appreciate the straightforward functionality of the CS‑401.

With its compact design, the Daiwa CS‑401G is also an excellent choice for those with limited space. It can be easily integrated into your existing setup without causing clutter, making it a practical solution for enhancing your radio capabilities.

In summary, the Daiwa CS‑401G 4‑Way N-Type Coax Switch is an essential tool for any radio enthusiast looking to improve their operating efficiency. With its low loss, high isolation, and user-friendly design, this coax switch is sure to enhance your overall radio experience. Upgrade your setup today and enjoy the benefits of superior switching performance.
