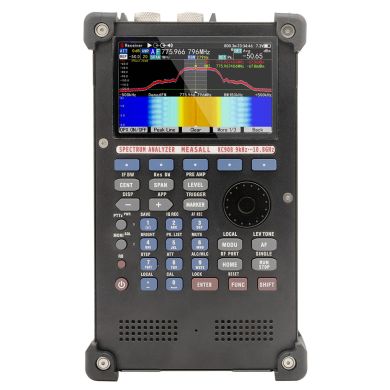

MYDEL-KC908A 10.8ghz Real-time Spectrum Analyzer Full mode Analog demodulation Signal Source
SKU Part Number: MYDEL-KC908
Introduction KC908 is a wide-band sweep receiver, it is capable of measuring radio frequency spectrum and field strength as...
Read More
£4,499.99 £3,749.99
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599
Introduction

KC908 is a wide-band sweep receiver, it is capable of measuring radio frequency spectrum and field strength as well as demodulating and monitoring common signalsAs for uncommon signals, KC908 can record the raw IQ signal and save for later analysis.

KC908 is based on SDR theory. Different from other SDR receivers, KC908 integratecomplete digital signal processing unit and user interface, so there is no need to depend on a computer. KC908 supports SDR software like HDSDR and is able to connect with GNURadio.

As a reconnaissance equipment, KC908 is capable of sweeping swiftly and discovering signalsBeing different from traditional sweeping spectrum analyzer, KC908 obtains spectrums of certian width using FFT and then splice them together to acquire a panorama. In this manner, KC908 reaches a speed of 3GHz bandwidth per-second with a 10kHz precision, which is equivalent to 120,000 25kHz channels. As for specific radio stations within 300-500MHz, it takes less than 0.1 second to finish. We’re proud of such a decent performance on a micro-size hand-held equipment.

KC908(10.8/18.6GHz model) comes with 2 receiving channels. It can measure the amplitude difference and phase difference between two channels. Also, iit equipped with signal generating function to output the CW and simple modulated signals. With GNURadio connected, KC908 is even capable of outputing relatively complicated digital modulating signals.

Feature
Basic Function

1. Spectrum analysis

2. Field strength measurement

3. Simple signal generator (10.8/18.6GHz model only)



Useful Functions

1.Better than 15KHz frequency measurement accuracy with any sweep span, a single measurement can get the accurate frequency.

2.Comfortable monitoring with multiple squelch mode

3.Automatically log strong signals for reconnaissance

4.Storing up to 999 channels

5.Waterfall figure display

6.Record IQ and audio to TF card

7.Level tone function for tracing on foot

8.Analogical demodulation with high volume audio for noisy environment
