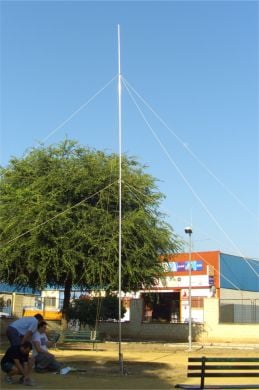

EAntenna 40AVM antenna VERTICAL 1/4Lambda 7 MHz - R2010602
SKU Part Number: 17892.04
Dimensions 188x10x10cm, Weight 8.45kg  The series represents EAntenna AVM ample time for testing and design to achieve a high performance...
Read More
Special Price £120.00 £100.00 Regular Price £174.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599
Dimensions 188x10x10cm, Weight 8.45kg



The series represents EAntenna AVM ample time for testing and design to achieve a high performance antennas and bandwidth amplitude, vertical antennas difficult thing.

This performance is characterized in that:

  • Like all vertical antennas are somewhat noisier than directional or dipole, but the AVM series with the diameter of the tubes we use, we get something down the level of other brands.
  • Direct feeding is 50 Ohms.
  • The bandwidth covers the entire band with low SWR / SWR.

All this is explained because in EAntenna:

  • Millimeter by millimeter, manufacture and build CNC machines and / or prepared to hundredths of a millimeter measurements for an accurate measurement.
  • It takes care of every piece of aluminum, by filing them smooth exterior and interior. All this by hand, by skilled and prepared for a final product of extreme quality.
  • All hardware we use is in stainless steel AISI 304
  • The T5 aluminum used is 6061/6063 and 6082 T6, the best alloys for manufacturing antennas and resistant to the weather elements.
  • Always AVM EAntenna antennas are insulated from the mast with German clamps PP (Polypropylene, -30 ° C / +60 ° C).
Specifications 40AVM
  • All sections of the antenna are 2 mm for better wind resistance.
  • Mast plate of 300x100mm with 6mm thick with M8 U-bolts for the plate to the mast.
  • Simple and quick, because the pieces have a unique position.
  • Antenna very solid construction, and a very acceptable weight.
SPECIFICATIONSEAntenna 40AVM
Frequency Range: 7.0 ~ 7.3 MHz
SWR: 1:1.1 ~ 1:1.6
Impedance: 50 Ohm
Maximum Power: 5 kW. *
Height: 10.1 m / 33.1 '
Sections / Sections: 6
Diameters: 50/45/40/35/30/25 mm
Wind Resistance: ≥ 160kmh / 100mph ≥ **
Weight: 8.45 kg / 18.6 lbs
