Momobeam EndFed Wire Antennas 10-20-40m or 10-20-40-80m / 300W - 1kW
SKU Part Number:
MOMO-EF10-CONFIG
The Momobeam End Fed wire antenna range offers a practical and efficient solution for HF operators who want multi-band performance from a simple wire...
Read More
Read More
As low as
£169.99
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599The Momobeam End Fed wire antenna range offers a practical and efficient solution for HF operators who want multi-band performance from a simple wire antenna. Suitable for fixed installations as well as portable operation, these antennas can be installed quickly in a horizontal, inverted L or sloper configuration.

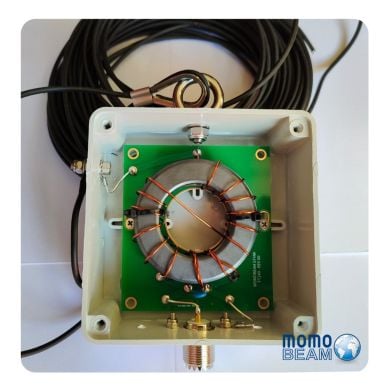

End Fed antennas are fed from one end of the wire, making them especially useful where a centre-fed dipole would be difficult to install. With a long half-wave radiator and a 49 to 1 wide-band impedance transformer, the antenna is designed to transform the high feed point impedance to a value closer to 50 ohms, allowing operation across multiple HF bands.
Momobeam End Fed antennas are built using coated copper core wire, UV-resistant materials and stainless steel hardware, making them suitable for outdoor use. When installed correctly at a good height and clear of nearby obstructions, they can provide excellent multi-band performance with a typical impedance match of better than 2 to 1 on supported bands. In some installations, minor trimming or the use of an internal or external tuner may help optimise SWR.
Available in 300W and 1kW versions, with standard and shorter coil-loaded models, the range gives operators a choice of compact or full-size options depending on their available space and operating requirements.
Available Models
| Model | Bands | Power Rating | Type |
|---|---|---|---|
| MOMO-EF1040-300W | 40m, 20m, 15m, 10m | 300W | Standard End Fed |
| MOMO-EF1040C-300W | 40m, 20m, 10m | 300W | Short End Fed with coil |
| MOMO-EF1080C-300W | 80m, 40m, 20m, 15m, 10m | 300W | Short End Fed with coil |
| MOMO-EF1040-1KW | 40m, 20m, 15m, 10m | 1kW | Standard End Fed |
| MOMO-EF1040C-1KW | 40m, 20m, 10m | 1kW | Short End Fed with coil |
| MOMO-EF1080C-1KW | 80m, 40m, 20m, 15m, 10m | 1kW | Short End Fed with coil |
Key Features
- Multi-band HF End Fed wire antenna range
- Available for 40m to 10m or 80m to 10m coverage, depending on model
- 300W and 1kW versions available
- Standard and shorter coil-loaded variants available
- Can be installed horizontally, as an inverted L or as a sloper
- Suitable for fixed stations and portable activities
- 49 to 1 wide-band impedance transformer
- Coated copper core radiating wire
- UV-resistant box and wire materials
- Stainless steel bolts for long-term outdoor durability
- Simple end-fed installation, ideal where centre feeding is difficult
Installation Notes
For best performance, install the antenna as high as practical, ideally no less than 10 metres, and keep it as clear as possible from nearby obstacles. Depending on the installation, surrounding objects and ground conditions, some SWR adjustment may be required. Your radio’s internal tuner or a suitable external tuner can help fine-tune the match where needed.
