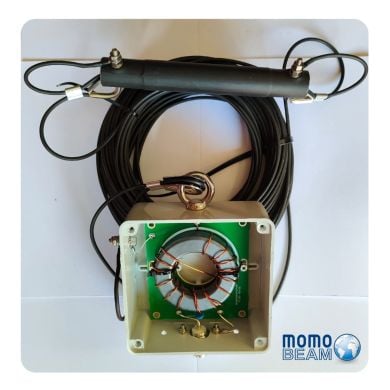

main product photo
Momobeam 10m 20m 40m 300W Short End Fed Wire Antenna with Coil
SKU Part Number: MOMO-EF1040C-300W
The Momobeam MOMO-EF1040C-300W is a short coil-loaded End Fed wire antenna designed for multi-band HF operation on 40m, 20m, and 10m. It is a...
Read More
£205.99
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The Momobeam MOMO-EF1040C-300W is a short coil-loaded End Fed wire antenna designed for multi-band HF operation on 40m, 20m, and 10m. It is a practical option for operators who want the convenience of an End Fed antenna, but need a more compact installation than the standard full-length version.

This 300W model is well suited to typical HF transceiver use, fixed station installations and portable activities. The shorter coil-loaded design makes it easier to fit into gardens, temporary field locations or installations where a longer wire may not be practical. It can be installed horizontally, as an inverted L or as a sloper depending on your available supports and space.

As an End Fed antenna, the MOMO-EF1040C-300W is fed from one end of the wire, making it useful where a centre-fed dipole would be difficult to install. It uses a long half-wave radiator with a 49 to 1 wide-band impedance transformer, designed to bring the high feed point impedance closer to 50 ohms for multi-band operation.

The antenna is built using coated copper core wire, UV-resistant box and wire materials, and stainless steel hardware for reliable outdoor durability. When installed as high as practical, ideally no less than 10 metres, and kept clear of nearby obstacles, it can provide a typical match of better than 2 to 1 on the supported bands. In some installations, minor trimming or the use of an internal or external tuner may help optimise SWR.

Key Features

  • 300W End Fed HF wire antenna
  • Short coil-loaded design for reduced installation length
  • Covers 40m, 20m, and 10m
  • Suitable for fixed installations and portable operation
  • Can be installed horizontally, as an inverted L or as a sloper
  • 49 to 1 wide-band impedance transformer
  • Coated copper core radiating wire
  • UV-resistant box and wire materials
  • Stainless steel hardware for outdoor durability
  • Simple end-fed installation, ideal where centre feeding is difficult
  • Designed for multi-band HF performance from a single wire antenna

Specifications

  • Product: Momobeam 10m 20m 40m 300W End Fed Wire Antenna with Coil
  • SKU: MOMO-EF1040C-300W
  • Type: Short End Fed wire antenna with coil
  • Supported bands: 40m, 20m,and 10m
  • Power rating: 300W
  • Transformer ratio: 49 to 1
  • Installation options: Horizontal, inverted L or sloper
  • Typical match: Better than 2 to 1 on supported bands when installed correctly

Installation Notes

For best performance, install the antenna as high as practical, ideally no less than 10 metres, and keep it clear of surrounding objects. SWR and tuning will vary depending on height, layout, nearby buildings, trees and ground conditions. A radio’s internal tuner or a suitable external tuner may help fine-tune the match where required.
