EAntenna 144LFA9 (14,13 dBi ヨ 25,26 dB F/B) - R2010149
SKU Part Number: 17740.09
Dimensions 151x10x10cm, Weight 5.25kg  The antennas for VHF EAntenna LFA represent the largest development in antennas with moderate boom length...
Read More
£210.95 £175.79
Pre Order
call

Want more help on this product?

Call 0345 2300 599
Dimensions 151x10x10cm, Weight 5.25kg



The antennas for VHF EAntenna LFA represent the largest development in antennas with moderate boom length for a single performance.

This performance is characterized in that:

  • You can listen to very low signals without QRM and QRN noise alters the audio clarity.
  • The food is straightforward to 50 Ohms, which has not lost any respect to lines of adaptation.
  • The bandwidth covers the entire band with low SWR / SWR.
  • The radiation lobe is wide, so that the signal is not as selective as you turn the minimum antenna.
  • Its ratio of F / B is high, since only antenna boom lengths can get exaggerated.
  • The gain is comparable with other models of antennas always larger in dimensions.

This is explained because in EAntenna:

  • Millimeter by millimeter, manufacture and build CNC machines and / or prepared to hundredths of a millimeter measurements for an accurate measurement.
  • It takes care of every piece of aluminum, by filing of rough exterior and interior. All this by hand, by qualified and prepared for a final product of extreme quality.
  • All hardware we use is in stainless steel AISI 304
  • The T5 aluminum used is 6061/6063 and 6082 T6, the best alloys for manufacturing antennas and resistant to the weather elements.
  • Always LFA EAntenna antennas are insulated from the boom, with German clamps PP (Polypropylene, -30 ° C / +60 ° C).
Specifications 144LFA9
  • 30x2mm square boom.
  • Elements of 6mm in diameter, except that the LOOP is 13mm and 10mm at the ends.
  • Mast plate of 150x100mm with 6mm thick with square U-bolts M6 boom to the plate and U-bolts of M8 to the plate to the mast.

Characteristics of the 144LFA9

  • After trying many models, we were surprised by EAntenna performance 144LFA9. The official station EAntenna ( www.eantenna.es / team ) have one of them fixed, and even with other antennas in the same direction, we noticed that the noise level is much lower. Something that characterizes the LFA antennas, but no other model has come to get.
  • A special lobe, makes it one of the most versatile LFA antennas by weight, because its elements are of 6mm.
  • Simple and quick, because the boom joints are easy to assemble.
  • Antenna very solid construction, and with a very acceptable weight.
  • Available for 2 or 4 units enfasar in a short (under enfasamiento table included), and to make a profit no big antenna can get.

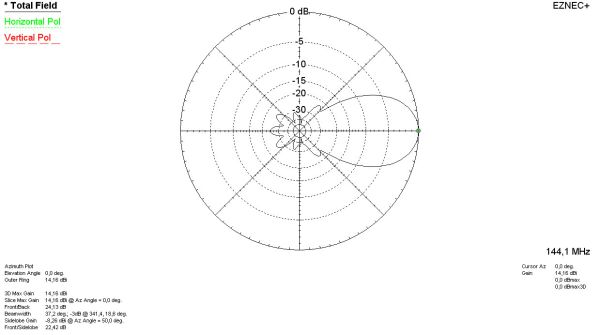

SPECIFICATIONSEAntenna 144LFA9
Freq. Range: 144~146 MHz.
Gain: 14,16 dBi
F/B: 24,13 dB
SWR: 1:1.1 ~ 1:1.2
Impedance: 50 Ohm
Max. Power: 5 kW.
Boom length: 4,50 m. / 14,75 '
Wind Survival: ≥ 160kmh / ≥ 100mph
Weight: 5,25 kg / 11,6 pounds
