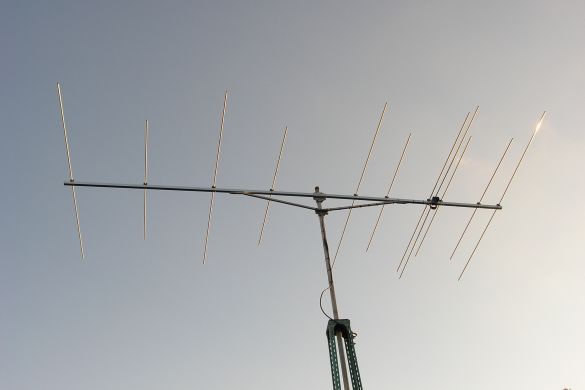

EAntenna 5070OWA11 (11.17 / 17.18 dBi - 10.55 / 14.37 dB F / B) - R2010152
SKU Part Number: 17810.64-11
Dimensions 182x17x11cm, Weight 10.5kg  Multiband antennas EAntenna OWA, also represent a major development in monobanders HF antennas, but...
Read More
£299.95 £249.96
Pre Order
call

Want more help on this product?

Call 0345 2300 599
Dimensions 182x17x11cm, Weight 10.5kg



Multiband antennas EAntenna OWA, also represent a major development in monobanders HF antennas, but optimizing the results for the same boom several bands.

This performance is characterized in that:

  • You can listen to very low signals without noise QRM and QRN alter audio clarity.
  • Direct feeding is 50 ohms, and one run.
  • The bandwidth of the OWA is the best technology development to cover the entire width of the band, and have low SWR / SWR.
  • The radiation pattern is similar to the LFA, but has more gain than these.
  • Its ratio of F / B is medium to high, offsetting the high gain front.

All this is explained because in EAntenna:

  • Millimeter by millimeter, manufacture and build CNC machines and / or prepared to hundredths of a millimeter measurements for an accurate measurement.
  • It takes care of every piece of aluminum, by filing them smooth exterior and interior. All this by hand, by skilled and prepared for a final product of extreme quality.
  • All hardware we use is in stainless steel AISI 304
  • The T5 aluminum used is 6061/6063 and 6082 T6, the best alloys for manufacturing antennas and resistant to the weather elements.
  • Always EAntenna antennas are insulated from the boom, with German clamps PP (Polypropylene, -30 ° C / +60 ° C).
Specifications 5070OWA11
  • Boom 35x2mm square sections.
  • 13mm elements. in diameter divided into 2 parts for 50 MHz and 70 MHz, for better transport.
  • Mast plate of 250x100mm with 6mm thick with square U-bolts M6 boom to the plate and U-bolts of M8 to the plate to the mast.

Features of the 5070OWA11

  • If you can not put 2 antennas on your tower, do not worry, this is your solution to take advantage of seasons of propagation in these two bands, in a single coaxial drop.
  • Even going to the field or portable, with a simple TV rotor can move without problems.
  • Simple and quick, because the boom joints are very easy to assemble.
  • Antenna very solid construction, and with an acceptable weight.
SPECIFICATIONSEAntenna5070OWA11
Frequency Range 50.0 ~ 51.0 MHz 70.0 ~ 70.5 MHz
Gain: 11.17 dBi 10.55 dBi
F / B: 17.18 dB 14.37 dB
SWR: 1:1 ~ 1:4 1:1 ~ 1:3
Impedance: 50 Ohm 50 Ohm
Maximum Power: 3 kW. 3 kW.
Boom length:   4.95 m / 16.2 '
Turning radius:
Wind Resistance:   ≥ 160kmh / 100mph ≥
Weight:   10.5 Kg / 23.1 Pounds
