Par End-Fedz EF-17QRP
SKU Part Number: VIB-EF-17QRP
Differences between the EF-17QRP and higher power versions of the 18 MHz single band antennas 22 GA radiator wire instead of 18 GA slightly...
Read More
£52.00 £43.33
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Differences between the EF-17QRP and higher power versions of the 18 MHz single band antennas

    • 22 GA radiator wire instead of 18 GA
    • slightly smaller and lighter matchbox than the other versions
    • Supplied with PL-259 male to BNC female adapter standard to allow use of feedline with either connector with QRP version

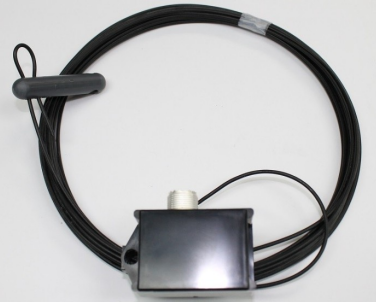

Par EndFedz® EF-17QRP 18 MHz antenna

SPECIFICATIONS

Polarity:  Depends on mounting configuration

Design Z: 50 Ohms

Frequency of operation: 18.068-18.168 MHz

V.S.W.R. Bandwidth: 400 kHz 1.5:1

Power Handling: 25 watts SSB/CW, 12.5 watts AM/digital modes

Weight: 5 ounces

Length: 25’ 6”

Hardware: Stainless Steel

Connector: Silver/Teflon SO-239, PL-259 to BNC female adapter included

Radiator: #22 AWG Polystealth wire

Click here to read the operation manual

Differences between the EF-17QRP and higher power versions of the 18 MHz single band antennas

    • 22 GA radiator wire instead of 18 GA
    • slightly smaller and lighter matchbox than the other versions
    • Supplied with PL-259 male to BNC female adapter standard to allow use of feedline with either connector with QRP version

Par EndFedz® EF-17QRP 18 MHz antenna

SPECIFICATIONS

Polarity:  Depends on mounting configuration

Design Z: 50 Ohms

Frequency of operation: 18.068-18.168 MHz

V.S.W.R. Bandwidth: 400 kHz 1.5:1

Power Handling: 25 watts SSB/CW, 12.5 watts AM/digital modes

Weight: 5 ounces

Length: 25’ 6”

Hardware: Stainless Steel

Connector: Silver/Teflon SO-239, PL-259 to BNC female adapter included

Radiator: #22 AWG Polystealth wire

Click here to read the operation manual
