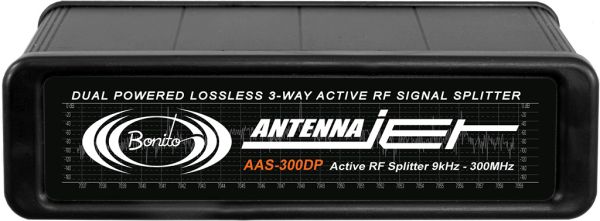

Bonito AntennaJet AAS300 Antenna splitter for 9kHz - 300MHz
SKU Part Number: BON-AAS-300
• Large dynamic range • Wide Frequency range (VLF - VHF) • High intermodulation suppression • High...
Read More
£269.95 £224.96
Availability: In stock

Seen this product cheaper elsewhere?

Call 0345 2300 599
• Large dynamic range
• Wide Frequency range (VLF - VHF)
• High intermodulation suppression
• High isolation between outputs
• High reverse isolation
• Inputs ESD-protected
• USB-Power supply
AntennaJet AAS 300 Schema
Bonito’s brand new active antenna signal splitter "AntennaJet AAS300" is splitting the signal from one antenna to 3 different receivers simultaneous. The AntennaJet has a wideband (>300MHz) and ultra low noise amplifier and can share one antenna up to 3 different receivers which can be tuned to fully different Frequencies, without switching the antenna cable or even pressing a button.
Due to the extraordinary high decoupling of the outputs (70dB), interference between the connected receivers is avoided. At the same time, the emission of interference to the antenna is effectively surpressed.
Up to three receivers can be connected. Non-connected outputs can remain open and don't need to be terminated. With its ESD-protection circuit the antenna input is protected against short or pulsed voltage surges or short circuits*.
* The ESD Protection does not replace a Lightning protection!
Bonito AntennaJet AAS300 rear
Technical Data
Input frequency range: 9KHz - 300MHz (-1dB)
Input connector / Impedance: BNC / 50 Ohms (DC-blocked max. 25V)
ESD-Eingangsschutz: 30KV; max. pulse power 350W (8/20µs)
Maximum allowable input power: 0dBm
Insertion loss: max. 1.5dB typ.
Output connectors / Impedance: BNC / 50 Ohm (DC-blocked max. 25V)
Isolation between the outputs: 70dB typ. <1MHz
60dB typ. < 30MHz
50dB typ. <100MHz
40dB typ. <300MHz
Amplitude difference of the outputs: max. 0.5dB typ.
IP3 Intercept-Point 3rd Order: +35dBm typ. <10MHz
+20dBm typ. >100MHz
Power supply: USB-B - Female
Power consumption:
max.50mA (5V DC)
Temperature range:
 0 - 40°C (without condensation)
Height / Weight:
115 x 90 x 32mm / 0.30kg (4.5 x 3,5x 1.2 in / about 10.5 oz)
USB A/B - Cable (shielded with ferrite core)
Optional Accessories:
USB plug - Power Supply (230 / 110 V to 5V DC)
All specifikations can be change at any time without notice
