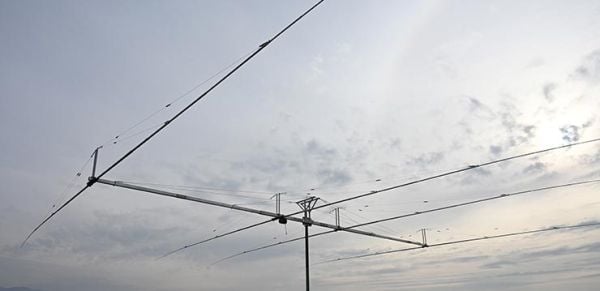

40m 4el. full size, 8.7 dBi, Heavy Duty Yagi antenna. Boom 18m By Antennas-Amplifiers
SKU Part Number: 40M4HD
40m 4el. Full size, 8.7 dBi, Heavy Duty Yagi antenna. Boom 18m By Antennas-Amplifiers Electrical Specifications PA7-4-18HD Frequency Range: 7 –...
Read More
£5,410.00
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

40m 4el. Full size, 8.7 dBi, Heavy Duty Yagi antenna. Boom 18m By Antennas-Amplifiers

Electrical Specifications PA7-4-18HD

Frequency Range: 7 – 7.2 MHz
Free Space Forward Gain: 8.7 dBi
Front-to-Back Ratio: 21 dB
3 dB Horizontal Beamwidth: 61°
Polarisation: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.5
Maximum Power Input: More than 3 kW (up to 10 kW versions)
Matching Method: Direct feed through a current balun.
Connector: SO239, “N” or 7/16 DIN

Mechanical Specifications PA7-4-18HD

Number of Elements: 4 full-size elements
Element Diameter: Tapered elements. Central 48 mm, last 8 mm
Longest Element: 23 m
Element Mounting Position: Below the Boom
Boom Length: 17.2 m
Boom Size: 100 x 100 mm + 80 x 80 Aluminum
The number of Boom Pieces: 6 or 3. Customised by order
Guy rope support: Yes, 8 x Stainless Steel 5 mm rope support
Balun and Connector: Included
Mounting Mast Diameter: 60 – 650 mm. Customised by order
Turning radius: 16 m
Surface Area: 2 m2
Element Survival Wind Speed: 130 km/h
Net Weight: 186 kg
Gross Weight: 200 kg
Transportation Length: 3 m or 6 m. Customised by order
