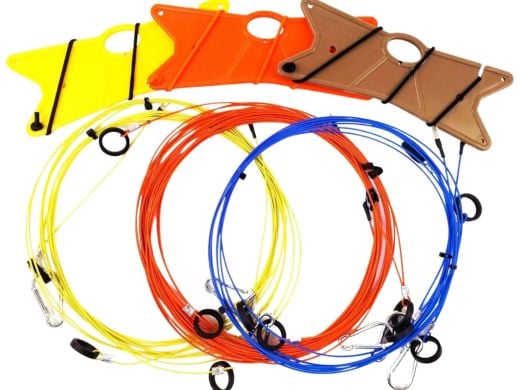

Chameleon CHA WARC-D Dipole Wire Set
Three matched, colour-coded balanced dipole wire pairs for adding the 30m, 17m and 12m WARC bands to the CHA LEFS 4010.
The Chameleon CHA WARC-D is a dedicated dipole expansion set for owners of the CHA LEFS 4010 who want resonant antenna options for the 30m, 17m and 12m WARC bands.
The kit contains three complete matched dipole pairs, with each band identified by its own wire colour. Select the complete matching pair for the band you want to use, connect both legs to the LEFS 4010 DIPOLE terminals and deploy them as a balanced dipole.
Because the WARC-D is designed specifically for the LEFS 4010 dipole configuration, there is no need to calculate your own radiator lengths or repurpose generic wire elements.
Complete matched dipole wire pair for operation on the 30m amateur band.
Complete matched dipole wire pair for operation on the 17m amateur band.
Complete matched dipole wire pair for operation on the 12m amateur band.
Designed for the LEFS 4010 DIPOLE terminals and DIPOLE BNC feed path.
Add a WARC Band Without Cutting Your Own Dipole
Each band has its own complete two-wire radiator set. Choose the corresponding colour, connect both legs to the LEFS 4010 DIPOLE terminals and raise the wires in the dipole arrangement described by Chameleon.
Feed the antenna through the DIPOLE BNC connection on the LEFS 4010 End Assembly, then check the installation before transmitting.
The CHA WARC-D is not an end-fed radiator, radial kit or counterpoise set.
Always use one complete matching colour pair. Do not mix wires from different bands, operate with only one leg connected or attach the WARC-D to the LEFS 4010 EFHW terminal.
Use the LEFS 4010 DIPOLE Connection
Three Complete Dipole Pairs
Orange
Yellow
Blue
Installation and Operating Information
Refer to Chameleon's current LEFS 4010 documentation for deployment geometry, installation, tuning, operating limits and safety information.
LEFS 4010 User Guide WARC-D Product HandbookChameleon CHA WARC-D
Compatibility, configuration and included components for the CHA WARC-D 30m, 17m and 12m dipole expansion set.
Compatibility and Configuration
Colour-Coded Dipole Pairs
Complete matched orange dipole pair.
Complete matched yellow dipole pair.
Complete matched blue dipole pair.
Correct Use
- Choose the complete matching wire pair for the required band
- Connect both legs to the LEFS 4010 DIPOLE terminals
- Use the LEFS 4010 DIPOLE BNC feed path
- Deploy both elements as a balanced dipole
- Verify the antenna installation before transmitting
- Do not use a single WARC-D wire by itself
- Do not mix wire colours from different bands
- Do not connect the WARC-D to the LEFS 4010 EFHW terminal
- Do not treat the wire pairs as arbitrary radials or counterpoises
Included Components
