MomoBeam MONO3 6 PORTABLE
SKU Part Number: MONO 3 6P
    MONO3 6P Antenna The MONO3 6P is the perfect antenna for your SOTA/POTA Activations holiday! Weighing only 1.9 kg / 4.2 lb, it will surprise...
Read More
£189.00 £157.50
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

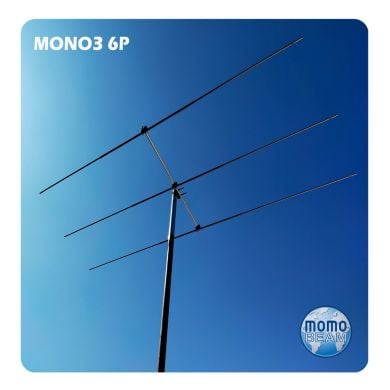

MONO3 6P Antenna

The MONO3 6P is the perfect antenna for your SOTA/POTA Activations holiday! Weighing only 1.9 kg / 4.2 lb, it will surprise you with its performance and ease of use. Assembly/disassembly is very quick thanks to the use of Wing Nuts so it is perfect for portable use. It covers 50 to 52 MHz with a flat SWR curve of less than 1.5:1, an excellent front-to-back ratio, and high gain. Momo Beam.

Specifications

  • Band: 6 m
  • Gain dBi (20 meters above the ground): 11.22
  • Gain dBd free space: 4.36 (6.5 dBi)
  • Front-to-Back Ratio: 17
  • Active Elements: 3
  • Bandwidth KHz (S.W.R. ≤ 1.5:1): 1500
  • Boom Length: 110 cm/3.6 ft
  • Turning Radius: 170 cm/5.6 ft
  • Feed Lines Required: 1 X 50 Ohm
  • Longest Element: 310 cm/10.17 ft
  • Power Handling: 3 kW
  • Wind Area: 0.1 m²/1.1 sq ft
  • Wind Survival*: 100 Kmh/55 Mph
  • Mast Diameter: 50 mm/2 inch (larger on request)
  • Weight (excluding packaging): 1.9 Kg/4.19 lb

Materials Used

Tubes and plates: Aluminum alloy 6060T6

Hardware: Galvanized steel

Insulating clamps: Polypropylene UV resistant

Manual: English

*Wind survival is the maximum wind speed to which the antenna can be subjected without incurring permanent deformation (calculated in the absence of ice)

Get the manual





MONO3 6P Antenna

The MONO3 6P is the perfect antenna for your SOTA/POTA Activations holiday! Weighing only 1.9 kg / 4.2 lb, it will surprise you with its performance and ease of use. Assembly/disassembly is very quick thanks to the use of Wing Nuts so it is perfect for portable use. It covers 50 to 52 MHz with a flat SWR curve of less than 1.5:1, an excellent front-to-back ratio, and high gain. Momo Beam.

Specifications

  • Band: 6 m
  • Gain dBi (20 meters above the ground): 11.22
  • Gain dBd free space: 4.36 (6.5 dBi)
  • Front-to-Back Ratio: 17
  • Active Elements: 3
  • Bandwidth KHz (S.W.R. ≤ 1.5:1): 1500
  • Boom Length: 110 cm/3.6 ft
  • Turning Radius: 170 cm/5.6 ft
  • Feed Lines Required: 1 X 50 Ohm
  • Longest Element: 310 cm/10.17 ft
  • Power Handling: 3 kW
  • Wind Area: 0.1 m²/1.1 sq ft
  • Wind Survival*: 100 Kmh/55 Mph
  • Mast Diameter: 50 mm/2 inch (larger on request)
  • Weight (excluding packaging): 1.9 Kg/4.19 lb

Materials Used

Tubes and plates: Aluminum alloy 6060T6

Hardware: Galvanized steel

Insulating clamps: Polypropylene UV resistant

Manual: English

*Wind survival is the maximum wind speed to which the antenna can be subjected without incurring permanent deformation (calculated in the absence of ice)

Get the manual
