TRI 16-101520BT
SKU Part Number: TRI 16-101520BT
TRI16 10/15/20 BT is a superb performance tri-band yagi designed to be installed on big towers. The TRI16 10/15/20BT is a unique antenna! The...
Read More
£2,407.42 £2,006.18
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

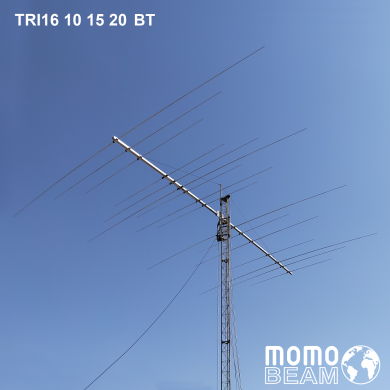

TRI16 10/15/20 BT is a superb performance tri-band yagi designed to be installed on big towers.

The TRI16 10/15/20BT is a unique antenna! The large space between the elements around the boom-to-mast plate allows installation on towers up to 180 cm/70 inches per side.
It uses sixteen (16) elements on a 11.6 m /38 ft boom with: 4 elements (20 M) reflector, driver and two directors; 5 elements (15 M) reflector, driver and three directors; 7 elements (10 M) reflector, driver and five directors.

TRI16 10/15/20 comes with an Assembly Tool and spare parts (bolts and a pair of aluminium tubes).
The 3kW RF Choke balun is also supplied as standard. This component is very expensive and many antenna manufacturers supply it as an optional extra.

Requires only one coaxial cable
Requires a rotor for medium/heavy load

TRI16 10/15/20 BT is a superb performance tri-band yagi designed to be installed on big towers.

The TRI16 10/15/20BT is a unique antenna! The large space between the elements around the boom-to-mast plate allows installation on towers up to 180 cm/70 inches per side.
It uses sixteen (16) elements on a 11.6 m /38 ft boom with: 4 elements (20 M) reflector, driver and two directors; 5 elements (15 M) reflector, driver and three directors; 7 elements (10 M) reflector, driver and five directors.

TRI16 10/15/20 comes with an Assembly Tool and spare parts (bolts and a pair of aluminium tubes).
The 3kW RF Choke balun is also supplied as standard. This component is very expensive and many antenna manufacturers supply it as an optional extra.

Requires only one coaxial cable
Requires a rotor for medium/heavy load
