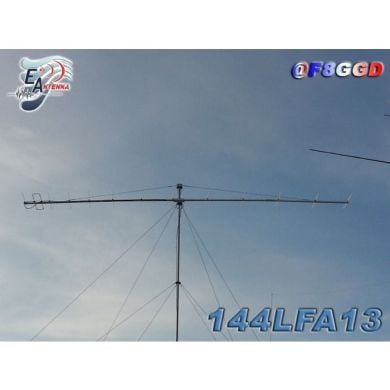

EAntenna 144LFA13 (16,04 dBi ヨ 26,4 dB F/B) - R2010130
SKU Part Number: 17740.13
Dimensions 209x17x11cm, Weight 10.2kg  The antennas for VHF EAntenna LFA represent the largest development in antennas with moderate boom length...
Read More
£299.95 £249.96
Availability: In stock
call

Seen this product cheaper elseware?

Call 0345 2300 599
Dimensions 209x17x11cm, Weight 10.2kg



The antennas for VHF EAntenna LFA represent the largest development in antennas with moderate boom length for a single performance.

This performance is characterized in that:

  • You can listen to very low signals without QRM and QRN noise alters the audio clarity.
  • The feed is straightforward to 50 Ohms, which has not lost any respect to lines of adaptation.
  • The bandwidth covers the entire band with low SWR / SWR.
  • The radiation lobe is wide, so that the signal is not as selective as you turn the minimum antenna.
  • Its ratio of F / B is high, since only antenna boom lengths can get exaggerated.
  • The gain is comparable with other models of antennas always larger in dimensions.
Specifications 144LFA13
  • 35x2mm square boom.
  • Elements of 8mm in diameter, except that the LOOP is 13mm and 10mm at the ends.
  • 250x100mm mast plate with 6mm thick and square U-bolts M6 to attach to the boom and M8 U-bolts to the mast.

Characteristics of the 144LFA13

  • Indeed, with only 8 meters of boom, the 144LFA13 is an antenna that no other manufacturer can offer this gain.
    Ideal for DX and EME elevation, with which you can understand why a EAntenna marks the difference from other manufacturers.
  • A lobe of 30.4 Azimuth Beamwidth at -3 dB, indicates how great this antenna, have a wide radius of RX in this length of boom. Making the LFA, the dream of DXman at 144 MHz with moderate-sized antennas.
  • Simple and quick, because the boom joints are easy to assemble.
  • Antenna very solid construction, and with a weight very acceptable.
  • Available for stack 2 or 4 units in a short (under table include phasing), and to make a profit no big antenna can get.
SPECIFICATIONSEAntenna 144LFA13
Frequency Range: 144~146 MHz.
Gain: 16,04 dBi
F/B: 26,4 dB
SWR: 1:1.1~1:1.2
Impedance: 50 Ohm
Maximum Power: 5 kW.
Boom length: 7,90m. / 25,90'
Wind Survival: ≥ 160kmh / ≥ 100mph
Weight: 10,2 Kg. / 22,5 pounds

* Gain dBi (gain over isotropic dipole in free space) = -2.15 dBd
** Ratio Gain Front / Back “F / B” (gain when the antenna is rotated 180 ° azimuth direction)
