SteppIR UrbanBeam 40m-6m Yagi Antenna Package
SKU Part Number: 00418-SPS-PACKAGE-09762
Included in this package: 1 x UrbanBeam Yagi, 40m-6m 1 x OptimizIR Controller It doesn’t look like a traditional beam, but it sure works DX...
Read More
£4,199.99 £3,499.99
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

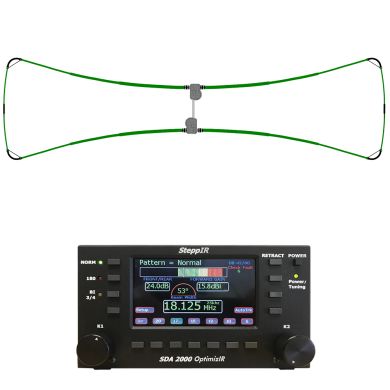

Included in this package:

1 x UrbanBeam Yagi, 40m-6m

1 x OptimizIR Controller

It doesn’t look like a traditional beam, but it sure works DX like a SteppIR!

The SteppIR UrbanBeam Yagi is a fantastic choice for those that are limited by lot size, regulations (HOA’s) or even the critical eye of neighbors and spouses.  The UrbanBeam has a unique appearance -some customers have remarked it looks like a bow-tie, or a butterfly!  Regardless of its shape, the UrbanBeam delivers outstanding performance for an antenna that weighs only 45 lb (20.5 kg) and has a wind load of a mere 4.4 sq ft (.41 sq m). The overall physical length of the Yagi is 30.5 ft (9.3 m), which allows for a turning radius of just 15 feet (4.72 m).

What is the OptimizIR?:

The OptimizIR includes all of the standard features that the SDA 100 offers and in addition offers a larger full-color display, enhanced GUI, can be used on ANY SteppIR antenna, and has the capability for the user to import created antenna models. Since this controller has the memory to store extra antenna models, SteppIR has gone ahead and modeled some cool yagi antennas including a max gain, max f/r, and wide beam antenna. These come stock on the OptimizIR for use straight away, and are viewable on a full color “power band” so it is easy and intuitive to visually determine the gain/FR weighting on the antenna model.

Why buy SteppIR?

Specifications:

  • UrbanBeam Yagi
  • 2 el on 20m-6m
  • rotatable dipole 40/30m
  • Turning Radius 15.5 ft
  • Longest Element 30.5 ft
  • Boom Length 48 inches
Weight 45 lb / 20.5 kg g
Wind Load (EIA-222-F/G*) 7.9 sq ft / .73 sq m
Wind load (EIA-222-C*) 4.4 sq ft / .41 sq m
Turning Radius 15.5 ft / 4.72 m
Boom Length 4.0 ft / 1.22 m
Longest Element 30.5 ft / 9.3 m
Boom Outside Diameter 1.75 in / 4.45 cm
Power Rating 3 KW
Frequency Coverage **6.8 mHz—54 mHz
Cable Requirements 12 conductor 22 ga shielded

Included in this package:

1 x UrbanBeam Yagi, 40m-6m

1 x OptimizIR Controller

It doesn’t look like a traditional beam, but it sure works DX like a SteppIR!

The SteppIR UrbanBeam Yagi is a fantastic choice for those that are limited by lot size, regulations (HOA’s) or even the critical eye of neighbors and spouses.  The UrbanBeam has a unique appearance -some customers have remarked it looks like a bow-tie, or a butterfly!  Regardless of its shape, the UrbanBeam delivers outstanding performance for an antenna that weighs only 45 lb (20.5 kg) and has a wind load of a mere 4.4 sq ft (.41 sq m). The overall physical length of the Yagi is 30.5 ft (9.3 m), which allows for a turning radius of just 15 feet (4.72 m).

What is the OptimizIR?:

The OptimizIR includes all of the standard features that the SDA 100 offers and in addition offers a larger full-color display, enhanced GUI, can be used on ANY SteppIR antenna, and has the capability for the user to import created antenna models. Since this controller has the memory to store extra antenna models, SteppIR has gone ahead and modeled some cool yagi antennas including a max gain, max f/r, and wide beam antenna. These come stock on the OptimizIR for use straight away, and are viewable on a full color “power band” so it is easy and intuitive to visually determine the gain/FR weighting on the antenna model.

Why buy SteppIR?

Specifications:

  • UrbanBeam Yagi
  • 2 el on 20m-6m
  • rotatable dipole 40/30m
  • Turning Radius 15.5 ft
  • Longest Element 30.5 ft
  • Boom Length 48 inches
Weight 45 lb / 20.5 kg g
Wind Load (EIA-222-F/G*) 7.9 sq ft / .73 sq m
Wind load (EIA-222-C*) 4.4 sq ft / .41 sq m
Turning Radius 15.5 ft / 4.72 m
Boom Length 4.0 ft / 1.22 m
Longest Element 30.5 ft / 9.3 m
Boom Outside Diameter 1.75 in / 4.45 cm
Power Rating 3 KW
Frequency Coverage **6.8 mHz—54 mHz
Cable Requirements 12 conductor 22 ga shielded
