DESHIBO GA800 - ACTIVE LOOP ANTENNA
SKU Part Number:
CH0030016
ABOUT DESHIBO GA800 - ACTIVE LOOP ANTENNA
GA800 is new product from De-shbo. The main body of the antenna is composed of a power control box and...
Read More
Read More
£119.95
£99.96
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599ABOUT DESHIBO GA800 - ACTIVE LOOP ANTENNA

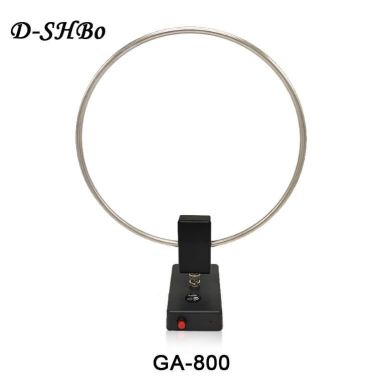

GA800 is new product from De-shbo. The main body of the antenna is composed of a power control box and an outdoor antenna – which can be separated by a connecting feeder or without a feeder, and the loop body and power control box are directly connected. The specific method of use depends on your own environment.
The receiving frequency is between 10kHz and 159MHz. The advantage of the antenna is that it is free of tuning and has strong receiving ability. Ring diameter: 26cm, compact and portable.
Considering that some users can set up the antenna outdoors, the antenna is designed as a split type and the loop circuit is added to the antenna loop to effectively introduce the outdoor electromagnetic signal into the room through the feeder. Its excellent circuit design can fully control the noise interference, thereby improve user experience.
Features / Specifications:
- Antenna Loop Size: 26cm
- Working Frequency: 10kHz-159MHz
- Operating Voltage: 5V/1A
- Operating Temperature: -10° C ~ +60°C
- Scenes to be used: Indoor & Outdoor
- Tuning Method: Free Tuning
- Power Supply Mode: TYPE-C charging / built-in 18650/2600 mAH
- Charging Circuit: Built-in battery protection circuit to protect the battery from over-discharge and over-charge, it will automatically disconnect wen the battery voltage is lower than 2.5V
- Impedance: 50 Ohm
- Gain: 20db (max.)
- Control Box (WxHxD): 280mm x 50mm x 280mm
- Weight: 0.65kg
Included in Box:
- 1 x D-26cm Antenna Loop
- 1 x Tune Free Controller Box
- 2 x Feeder Cables (BNC-3.5 and BNC-BNC)
- 1 x Built-in 18350 Lithium Battery
