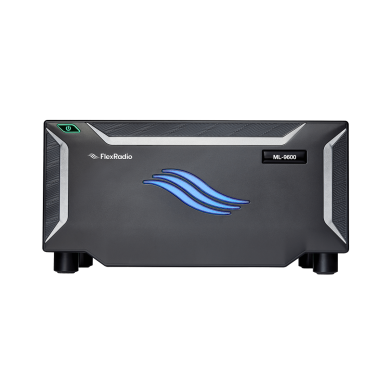

main product photo
Flex ML-9600 Wideband HF Transceiver - PRICE/Delivery TBC
SKU Part Number: ML-9600
Final Price and delivery TBC. ML-9600 Wideband HF Transceiver COTS 1.7-30 MHZ 100W MODERNIZED HF WIDEBAND TRANSCEIVER   Wideband HF –...
Read More
£0.00 £0.00
Availability: Out of stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Final Price and delivery TBC.

ML-9600 Wideband HF Transceiver

COTS 1.7-30 MHZ 100W MODERNIZED HF WIDEBAND TRANSCEIVER



Wideband HF – Modernized for ultimate BLOS performance.

FlexRadio’s ML-9600 series of wideband Software Defined Radios are the ultimate platform for commercial and government HF applications. This Commercial Off The Shelf (COTS) transceiver can support up to 78kHz* transmit bandwidth and up to 1.2MHz* receiver bandwidth to support the latest modernized waveforms.

The fully integrated modem provides native use of modern protocols and waveforms including: 2G/3G/4G ALE, MIL- STD-188-110D, MIL-STD-188-141D, STANAG 4285, 4415, 4529, 4538, 4539  and 5069.

With built in IP-based Ethernet communications the transceiver can be operated locally with an included Windows application, or through custom applications via an open API.

For rapid deployment or prototyping of waveforms, we offer an optional GNU Radio source/sink  interface compatible with multiple operating systems. The SmartSDR open API allows for developers to create custom applications and waveforms to interface directly with the radio using plain language commands and standard VITA- 49 streaming RF/IF and FFT data. Waveforms can be loaded directly into the ML-9600 for operational use.

The ML-9600 includes a additional +10dBm exciter output that can be combined with FlexRadio’s COTS high power, modular RF Power Amplifier solutions up to 10 kW such as the FPA-5K and FPA-10K.

For more information, contact [email protected]



  • 1.7 to 30 MHz 100W Continuous Transmit/Receive
  • Broad Range of NATO and MIL-STD Waveforms
  • 2G/3G/4G ALE Support
  • Full Featured Open Waveform and Control API
  • Up to 78kHz* Available Transceiver Bandwidth
  • Up to 1.2 MHz* Receiver Bandwidth
  • Ethernet Communication
  • GNU Radio Source/Link Compatible
  • Up to Four Independent Narrowband (20kHz) Receivers
  • Up to Four 14 MHz Real Time Spectrum Displays
  • Ultra-Low Phase Noise RX/TX
  • Diversity Reception
  • Simplex and Full Duplex Receive Capable
  • Optional Integrated GPSDO for Precision Time/Location
  • Optional Precision Time Stamping Enables Wide Range of Applications including DF, TDOA, Beam Steering and More
  • Two Low Power +10dBm Exciter Output Available
  • Separate 4-Core CPU for Customer

*Additional Receivers and Spectral Displays Optional
