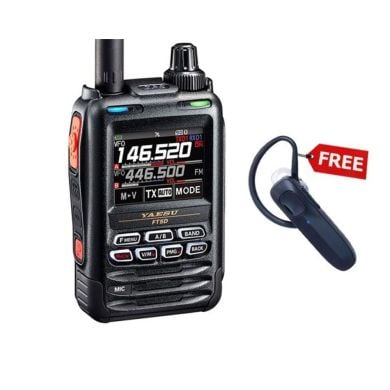

Yaesu FT5DE
5W C4FM Digital/FM Dual-Band Handheld Transceiver
Premium dual-band handheld performance with C4FM digital voice, genuine dual reception, a colour touchscreen, integrated GPS, APRS and Bluetooth. The FT5DE packs serious amateur-radio capability into a compact, rugged and highly versatile portable transceiver.
FREE SSM-BT20 Headset
Receive a Yaesu SSM-BT20 Bluetooth headset, worth £28.00, completely free with your FT5DE. Enjoy compatible wireless hands-free operation straight out of the box.
View the SSM-BT20 Headset →Free headset available while promotional stocks last. Bluetooth is already built into the FT5DE.
More than an ordinary dual-band handheld
The Yaesu FT5DE is a fully featured 144/430MHz handheld transceiver combining reliable 5W RF output with FM analogue and Yaesu System Fusion C4FM digital communication. Developed for operators who want a capable handheld without sacrificing usability, it offers a colour touchscreen, independent dual receivers, Bluetooth connectivity and powerful digital operating functions.
Its compact design measures approximately 62 x 100 x 34mm, while rubber corner protection and an IPX7 water-resistance rating help make it suitable for outdoor use. The high-resolution display and dedicated operating controls provide convenient access to essential settings.
Whether you're communicating through a local repeater, monitoring multiple frequencies, sharing your position over APRS or accessing a compatible WIRES-X digital node, the FT5DE provides an impressive range of possibilities in a handheld radio.
Designed for serious portable operation
RF Output
Selectable transmit power up to 5W on the 144MHz and 430MHz amateur bands.
Independent Receivers
V/V, U/U, V/U and U/V combinations for flexible monitoring.
Water Resistance
Water-resistant construction under the manufacturer's specified immersion conditions.
mAh Battery
Supplied SBR-14LI lithium-ion battery for extended portable operation.
Monitor two frequencies with independent receivers
The FT5DE features independent A and B receivers, allowing simultaneous monitoring of two frequencies. You can receive VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF combinations, making it useful for monitoring repeaters, club channels and local simplex traffic.
Separate LED indicators show the reception and operating status of each band, helping you recognise whether signals are being received in analogue FM or C4FM digital mode.
The FT5DE can monitor both receivers for C4FM signals, but it does not decode two C4FM voice calls simultaneously. When digital transmissions arrive on both bands, priority is given to the active band.
Digital voice and analogue FM in one handheld
The FT5DE supports Yaesu C4FM digital communication and conventional FM analogue operation. Automatic Mode Select (AMS) recognises compatible incoming digital or analogue transmissions and selects the appropriate receive mode.
DG-ID and Group Monitor functions allow users to communicate with compatible digital groups, while Digital Personal ID (DP-ID) offers additional identification features within supported System Fusion operations.
These digital functions can simplify communication between club members, local repeaters and other compatible C4FM operators.
Wireless communication, straight out of the box
Unlike some mobile transceivers that require an optional Bluetooth module, the FT5DE includes Bluetooth hardware as standard. Pair a compatible wireless headset for hands-free listening and transmitting, without needing an additional module.
The Yaesu SSM-BT20 is designed for compatible Yaesu transceivers and is included free with this limited-time ML&S offer.
View Yaesu SSM-BT20 Headset →Touch & Go with Primary Memory Group
The Primary Memory Group (PMG) function provides quick access to frequently used frequencies. Hold the PMG key to register a channel, then use the graphical activity display to observe reception on the stored frequencies.
Touching an activity bar selects the corresponding frequency, allowing rapid switching between favourite repeaters, club channels and local operating frequencies.
Band Scope, MAG and flexible memory functions
79-Channel Band Scope
View activity on up to 79 channels surrounding the selected frequency, depending on the chosen step size.
Memory Auto Grouping
MAG groups memory channels automatically by band for more convenient recall.
999 Memory Channels
Extensive channel storage with alphanumeric labels for organising repeaters and frequently used frequencies.
Wideband Reception
Receive broadcast, airband and other supported services across the radio's extensive receive coverage.
Built-in GPS, APRS and Smart Navigation
The FT5DE incorporates a high-sensitivity 66-channel GPS receiver for compatible position-related functions. GPS information can be used with APRS to transmit position reports and receive data from other stations.
Its integrated 1200/9600bps APRS modem supports messaging, position reporting and other packet communication features using the B-band receiver.
Yaesu Smart Navigation provides direction and location information on the colour display, helping operators make use of compatible position data during portable operation.
Portable Digital Node capability
The FT5DE supports the WIRES-X Portable Digital Node function. With a compatible internet-connected Windows computer, the appropriate Yaesu software and the optional SCU-39 connection cable kit, the handheld can form part of a portable digital-node installation.
The required computer, internet connection and SCU-39 cable kit are not included with the standard radio package.
Rugged construction and dependable battery power
The FT5DE's protective rubber corners and IPX7 water-resistance rating make it a practical companion for outdoor operating. Its compact shape and flat-backed design offer a comfortable grip while using the controls.
The supplied SBR-14LI 2,200mAh lithium-ion battery provides portable power, with optional spare battery packs and charging accessories available for operators who require longer sessions away from mains electricity.
Yaesu's IPX7 specification applies with the antenna and side terminal cover correctly fitted. It is an immersion-resistance rating, not a guarantee against every form of water damage.
Programming and UK repeater settings
To use the appropriate regional repeater settings, make sure the FT5DE is configured for the UK. We have a simple illustrated guide showing where to make this change.
View UK Repeater Settings Guide →The USB cable supplied in the box is intended for firmware updates. It is not the cable for normal PC memory programming. A compatible programming connection, such as the SCU-57, is required for supported PC programming arrangements.
What's included?
Standard documentation and small accessories are supplied according to the UK package. The SSM-BT20 is an additional ML&S promotional accessory, available while stocks last. PC programming accessories are sold separately.
Official Yaesu Documentation
Read the official Yaesu operating manual or explore the manufacturer's FT5DE information for full technical and operating details.
Yaesu FT5DE
5W 144/430MHz C4FM/FM dual-band digital handheld transceiver with independent receivers, touchscreen, integrated Bluetooth, GPS, APRS and IPX7 water resistance.
General Specifications
| Model | FT5DE, European version |
|---|---|
| Manufacturer | Yaesu Musen |
| Transceiver Type | Dual-band C4FM/FM handheld |
| 144MHz TX Coverage | 144-146MHz |
| 430MHz TX Coverage | 430-440MHz |
| A-Band Receive | 0.5-999.99MHz, subject to destination exclusions |
| B-Band Receive | 108-580MHz |
| Modulation | FM, narrow FM, C4FM digital; AM reception |
| Frequency Stability | ±2.5ppm, -20 to +60 degrees C |
| Standard Battery Voltage | 7.2V DC nominal |
| External DC Supply | 10.5-16V DC nominal operating supply |
| Water Resistance | IPX7, with covers and antenna properly secured |
| Dimensions | 62 x 100 x 34mm (W x H x D) |
| Approximate Weight | 282g including SBR-14LI battery and antenna |
Transmitter Specifications
| Maximum RF Output | 5W |
|---|---|
| Power Levels | 5W, 2.5W, 1W, 0.3W |
| Optional AA Tray Output | 0.5W or 0.3W with FBA-39 |
| FM Emission | F3E |
| C4FM Emission | F7W |
| Modulation Method | Variable reactance FM; four-level FSK digital |
| Current at 5W, VHF | Approximately 1.6A |
| Current at 5W, UHF | Approximately 1.9A |
Receiver and Audio
| Receiver Architecture | Double-conversion superheterodyne for AM/NFM |
|---|---|
| Independent Receivers | A and B receiving paths |
| Dual-Receive Combinations | V/V, U/U, V/U, U/V |
| Simultaneous C4FM Voice | Not supported; active band has priority |
| Internal Audio Output | 1W into 8 ohms at 10% THD, latest brochure specification |
| External Audio Output | 500mW into 8 ohms at 10% THD |
| Bluetooth | Integrated, supports compatible headsets |
| Included Promotional Headset | Yaesu SSM-BT20, while stocks last |
Digital and Operating Functions
| Digital Voice | C4FM System Fusion |
|---|---|
| Automatic Mode Select | AMS |
| Digital Group Functions | DG-ID, DP-ID, Group Monitor |
| Memory Channels | 999 |
| Memory Auto Grouping | MAG |
| Primary Memory Group | PMG / Touch & Go |
| Band Scope | Up to 79 channels |
| GPS | Integrated 66-channel receiver |
| APRS | 1200/9600bps AX.25 modem, B band |
| WIRES-X | Portable Digital Node, with optional equipment |
| Smart Navigation | Supported |
| Memory Card | microSD |
| Voice Recording | Supported with appropriate memory storage |
Battery and Charging
| Supplied Battery | SBR-14LI lithium-ion |
|---|---|
| Battery Capacity | 2,200mAh |
| Nominal Voltage | 7.2V DC |
| VHF Operating Time | Approx. 9.5 hours, manufacturer duty cycle |
| UHF Operating Time | Approx. 8 hours, manufacturer duty cycle |
| Supplied Charger | SAD-25 series |
| Optional Rapid Charger | CD-41 |
| Optional Battery Tray | FBA-39, 3 AA cells |
Standard Package Contents
| Handheld Transceiver | FT5DE |
|---|---|
| Battery | SBR-14LI, 2,200mAh |
| Charger | SAD-25 series |
| Antenna | Standard Yaesu antenna |
| Belt Clip | SHB-13 |
| Quick-Release Holster | SHB-26 |
| USB Cable | Firmware update cable |
| Documentation | Manufacturer documentation |
Additional ML&S Promotional Accessory
Yaesu SSM-BT20 Bluetooth headset, worth £28.00, supplied free with qualifying FT5DE purchases while promotional stocks last. This is an additional retailer offer rather than part of the standard factory package.
View SSM-BT20 →Operating and Compatibility Notes
Bluetooth: Integrated as standard. The included promotional SSM-BT20 headset does not require an additional Bluetooth module.
Dual receive: Supports simultaneous A/B receiver monitoring, with active-band priority for digital C4FM voice reception.
Programming: The supplied USB cable is for firmware updates. Normal PC memory programming requires compatible additional equipment.
UK repeaters: Check that the radio's repeater region has been configured correctly for UK use.
Water resistance: IPX7 applies with the antenna and connector covers securely fitted in accordance with Yaesu's instructions.
Yaesu FT5DE Documentation
See the official operating manual for complete specifications, radio setup and advanced digital operating functions.
