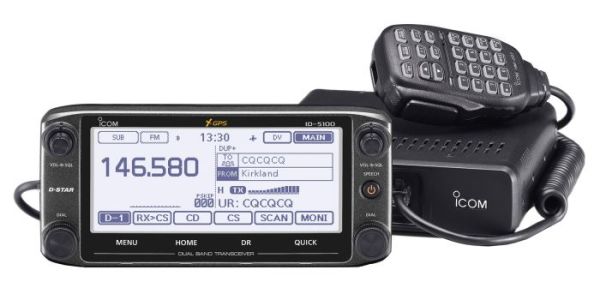

Icom ID-5100E - Dual Band D-STAR Mobile Radio
SKU Part Number: ID-5100E-CONFIG
Icom are pleased to announce details of the new ID-5100 dual band D-STAR mobile. As with Icom’s latest range of products, this new model has a...
Read More
As low as £639.95 £533.29
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Icom are pleased to announce details of the new ID-5100 dual band D-STAR mobile. As with Icom’s latest range of products, this new model has a new generation design and range of features including large, responsive touch screen LCD, Bluetooth connectivity and second station control through an Android device*.

 Icom is supplying the radio in two versions:


ID-5100E

The standard version, complete with multi-functional microphone and hanger, DC power and controller cables and CS-5100 cloning software.

ID-5100E Deluxe

Includes Bluetooth features and mounting equipment: MBF-1 Suction cup mounting bracket; MBA-2 controller bracket; UT-133 Bluetooth unit and VS-3 Bluetooth headset.


Note: MBR-100 BRACKET INCLUDED IN BOTH VERSIONS

CLICK HERE FOR UK REPEATER LIST

CLICK HERE TO VIEW FULL ICOM D-STAR RANGE

CLICK HERE FOR FIRMWARE UPDATE

Please Note, to update your firmware, you will require one of the following data connection cables:
OPC-2350LU
OPC-2218LU
OPC-1529R








Intuitive touch screen operation, Menu-driven user interface
The intuitive touch screen interface provides quick and smooth operation for setting and editing various
functions and memories. The 5.5 inch display (320 × 128 pixel) shows a large easy-to-see software keypad
(QWERTY keyboard), and allows you to input alphanumeric characters quickly.
  •  VHF/UHF, VHF/VHF, UHF/UHF Dual receive
The ID-5100E receives 118–174MHz and 375–550MHz with dual receiver capability that allows you to
receive two bands simultaneously (including within a single band). Almost all VHF & UHF communications
are available to you!
  • DV Dualwatch
The ID-5100E has simultaneous receive for FM/FM and FM/DV modes, and the capability of monitoring
two DV signals. The main band audio has priority, if two DV signals come in at the same time.

  • Integrated GPS receiver
The ID-5100E has an integrated GPS which allows you to transmit and receive position data from the
built-in GPS receiver. Position, course, speed and altitude are shown on the display. The GPS position
information can be used for exchanging position reports, tracing the GPS log and searching for nearby
repeater sites. The GPS antenna is located in the remote head, no external GPS antenna required.

  • DV/FM Repeater list function
The DV/FM repeater list function assists you in accessing near-by repeaters, even where you are visiting
an area for the first time. The function searches for near-by repeaters using the repeater memories with
the GPS position information. To use the repeater list function, the position data of the repeater is
required in the repeater list. The ID-5100E will be shipped with a limited number of repeater memories
pre-programmed.

  • Dplus reflector linking
Dplus Reflector link commands are added to the DR function to allow easy reflector operation. Use
Reflector, link/unlink to Reflector, echo test and repeater information commands are selectable.

  • UT-133 Bluetooth unit (option)
The UT-133 is the optional Bluetooth board necessary for operation with the optional VS-3 headset and
the optional RS-MS1A, Android application.

  • VS-3 Bluetooth headset (option)
The optional Bluetooth headset, VS-3, can be used for hands-free communication and remotely control
the ID-5100E with three programmable buttons. Providing you with convenient communication in a
vehicle.
