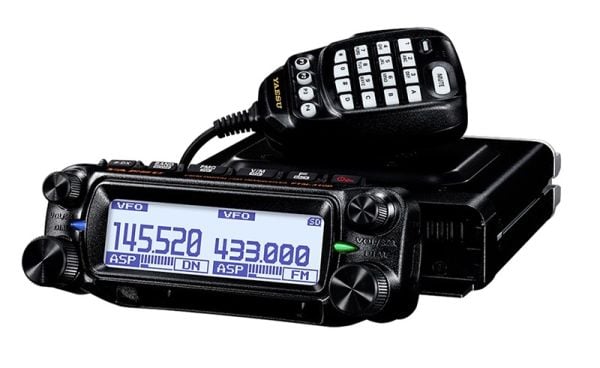

main product photo
Yaesu FTM-310DE (WITHOUT ASP) - 144/430MHz 55W/50W C4FM Digital/ FM Mobile Transceiver
SKU Part Number: FTM-310DE-NON-ASP
The FTM-310DE series consists of the FTM-310DE ASP and FTM-310DE which shares the core feature set of the FTM310DE ASP. However, the FTM-310DE...
Read More
Finance from £9.44 a month
Special Price £355.00 Regular Price £409.00
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Product Accessories

The FTM-310DE series consists of the FTM-310DE ASP and FTM-310DE which shares the core feature set of the FTM310DE ASP. However, the FTM-310DE requires the optional SPU-1 board for ASP (Audio Digital Signal Processing) operation.

This version does not include the SPU-1 ASP board pre-installed however...

Limited Time Offer - While Stocks Last!

This Yaesu FTM-310DE is supplied WITHOUT the ASP Unit (SPU-1) installed, but includes the following:

Yaesu SPU-1 ASP Unit (self-install) - worth £59.00

Install it yourself at your convenience and unlock the full performance of your radio - at no extra cost.



FTM-310DE Series - True Dual Band Transceiver

The FTM-310DE series offers true dual-band operation with independent receivers for different bands or within the same band, including C4FM/C4FM simultaneous receive (V/U, V/V, U/V, U/U). It provides 55W on VHF and 50W on UHF (with selectable power options: 55W/50W, 25W, 5W).

Key Features:

  • Heavy Duty Heat Sink with FACC (Funnel Air Convection Conductor): Ensures stable and reliable transmit power.

  • 6W Total Audio Output: Powered by AESS (Acoustic Enhanced Speaker System), which combines a 3W front speaker inside the control head and a 3W main-unit speaker. The AESS system provides clear, high-fidelity audio even in noisy environments.

  • Full Dot-Matrix Display: Delivers clear, precise information for efficient operation.

Remarkable Functions:

  • C4FM Digital Mode: C4FM delivers excellent audio quality with a low Bit Error Rate (BER) compared to GMSK digital. The original YAESU error correction technology ensures reliable communication.

  • Super-DX

    • Super-DX: Activates a high sensitivity RF amplifier for both C4FM and FM analog modes.

  • PMG (Primary Memory Group): Assign up to 5 VFO or Memory Channel frequencies to the PMG for simultaneous monitoring with two receivers. The reception status is displayed in real-time on the PMG screen with a bar graph.

    • AUTO Mode: Monitors all PMG channels, with up to two channels heard simultaneously.

    • MANUAL Mode: Monitors a single channel, with other channels displayed on screen.

  • MAG (Memory Auto Grouping): Automatically groups and recalls memory channels for each band. User can also customize memory channels in My Group (M-GRP).

  • CFL (Customized Function List): Register up to 9 frequently used functions from the 127 menus for easy access.

Advanced Display Features:

  • High-resolution Band Scope: The dual receive and scope operation display is switchable. With the left DIAL knob, the frequency range can be centered, and the signal at the center marker is received. The right DIAL knob allows the marker to move across the display to receive signals at different frequencies.

FM Friendly Digital using AMS (Automatic Mode Select):

  • AMS: Automatically detects whether the receiving signal is C4FM Digital or FM analog and adjusts the receiver mode accordingly.

  • DG-ID (Digital Group ID): Communicate only with group members who share the same frequency and DG-ID number.

  • GM (Group Monitor): Monitors stations with the same DG-ID number within range.

Additional Features:

  • High-Sensitivity 66 Channel GPS Receiver

  • 1200/9600bps APRS® Data Communication

  • WiRES-X Operation Supported

  • Wide-range Receiver Coverage: From 108MHz to 550MHz on both MAIN/SUB bands.

  • Bluetooth® Hands-free Operation: Available with the optional BU-5 board.

  • Flexible Control-Head Adjustment: With the optional SJMK-500 Swing-Head Kit, allowing better positioning of the control-head.

Some fundamental and remarkable features of the FTM-310DE series are:

PMG (Primary Memory Group):

Up to 5 VFO or Memory Channel frequencies can be assigned to the PMG and monitored using two different receivers.  The reception status of the PMG channels is displayed in real time with a bar graph on the PMG screen. AUTO or MANUAL mode is selectable. AUTO mode monitors all PMG channels and up to two channels can be simultaneously heard.  Transmit is automatically moved to the received channel. MANUAL mode always monitors the manually selected channel and transmit also stays on that channel.  The signal received on the other channel is also shown on the screen and the audio can be heard.

MAG (Memory Auto Grouping):

Memory channels can be automatically grouped and recalled for each band. In “My Group(M-GRP)”, any memory channels can be registered according to the user’s preference regardless of band.

CFL (Customized Function List):

Up to 9 frequently used functions from the 127 Menus can be registered and then easily selected.

High-resolution Band Scope:

Dual receive and Scope operation display is switchable each time the [BAND](SCOPE) key is pressed and held.  Up to 47 channels can be displayed with the Scope operation.  By rotating the left DIAL knob, the frequency range can be centered and the signal at the center marker is received.  By rotating the right DIAL knob, the marker can be moved across the display and the signal at the market is received.  Transmission can be performed at the frequency of the marker position at any time.

FM Friendly Digital using AMS(Automatic Mode Select):

AMS (Automatic Mode Select) automatically determines whether the receiving signal is C4FM Digital or FM analog and sets the receiver to the appropriate mode.

DG-ID (Digital Group ID) and GM (Group Monitor):

DG-ID function allows using two-digit ID numbers (00 - 99) to communicate only with specific group members who set the same frequency and DG-ID number in advance.  GM (Group Monitor) function can be utilized to automatically monitor when group member stations with the same DG-ID number are operating within communication range.

Some other practical features of the FTM-310DE series are:

  • High-Sensitivity 66 Channel GPS Receiver

  • 1200/9600bps APRS® Data Communication

  • Fully Supports WiRES-X Operation

  • Wide-range Receiver Coverage: From 108MHz to 550MHz on both MAIN/SUB bands

  • Bluetooth® Hands-free Operation: Available with the optional BU-5 board

  • Flexible Angle Adjustment of the Control-Head: By attaching the optional SJMK-500 Swing-Head Kit

  • Control-Head with Microphone Jack: In addition to the microphone connections on the front of the main unit
