DX Patrol QO-100 Power Amplifier
SKU Part Number: DXPAT-AMP

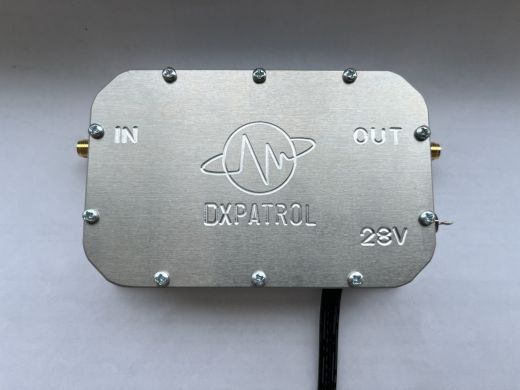

Note - Picture shows slightly older model. New models are 24V instead of 28V DX Patrol QO-100 Power Amplifier The DX Patrol QO-100 Power Amplifier...
Read More
£169.96
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Product Accessories

Note - Picture shows slightly older model. New models are 24V instead of 28V

DX Patrol QO-100 Power Amplifier

The DX Patrol QO-100 Power Amplifier is a robust and efficient 2.4 GHz amplifier designed to complement the DX Patrol Up Converter and deliver a strong, clean uplink signal to the QO-100 (Es’hail-2) satellite. Compact and well-built, it provides up to 12 W of RF output power (with 20 W achievable) from a modest 50–100 mW input, making it the ideal final stage for any serious QO-100 station.

Based on the NXP MHT1008NT1 LDMOS RF amplifier and RF2126 driver, this amplifier offers an impressive 25 dB of gain and excellent linearity, ensuring your signal remains clear and stable. It features both VOX and TX-Ground PTT control options, with integrated power and SWR metering for real-time performance monitoring. The amplifier operates from a 24 V DC supply (with a built-in 12–24 V step-up converter included) and typically draws up to 2 A under full output conditions.

Housed in a rugged aluminium enclosure with SMA connectors and feed-through capacitors for clean DC input, the amplifier includes LED indicators for easy visual status monitoring. Designed to operate reliably in demanding conditions, it offers excellent thermal stability, accurate SWR readings, and a conservative power rating that ensures long-term durability.

Main Features

  • Designed for QO-100 (Es’hail-2) uplink operation
  • Output power: 12 W nominal, 20 W achievable
  • Input power: 50–100 mW
  • Gain: approximately 25 dB
  • Frequency: 2400 MHz (2.4 GHz)
  • Voltage: 24 V DC (step-up converter included)
  • Bias current: 600 mA
  • Max current: 1.5–2 A
  • LDMOS amplifier stage: NXP MHT1008NT1
  • Driver: RF2126
  • TX-Ground and VOX PTT control
  • Integrated SWR and Power meter
  • SWR input: 1.3:1 at 50 Ohms
  • Max VSWR output: 5:1
  • Power meter output: 0–4 V DC (full power)
  • SWR meter output: 1.5 V (1:1) to 4 V (∞)
  • Operating temperature: –40°C to +80°C
  • Max transistor temperature: 150°C
  • Aluminium housing with M3 mounting holes
  • SMA RF connectors, DC feed-through capacitors
  • Dimensions: 97 × 62 × 26 mm

Performance Overview

The DX Patrol amplifier is designed to provide clean, reliable 2.4 GHz transmission power for QO-100 operations. With VOX PTT and onboard power/SWR metering, it integrates easily into your setup and requires no additional control hardware. The amplifier’s conservative 12 W rating ensures long life and dependable operation even under continuous transmission.
