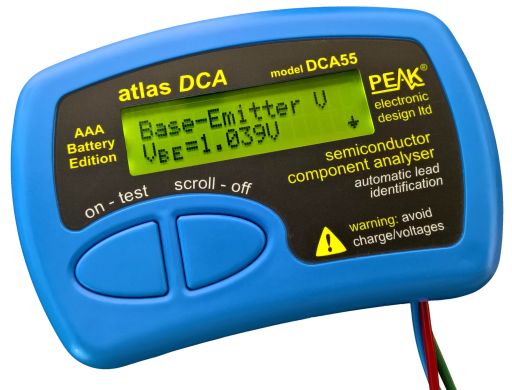

Atlas DCA - Semiconductor Analyser (Model DCA55)
SKU Part Number: PEAK-DCA55
Connect any way round to automatically identify and measure a wide range of semiconductor devices. The DCA55 will automatically identify the type of...
Read More
£72.00 £60.00
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599
Connect any way round to automatically identify and measure a wide range of semiconductor devices. The DCA55 will automatically identify the type of the part, pinout and many component parameters. Components supported include bipolar NPN/PNP transistors, darlingtons, diode-protected transistors, transistors with built-in resistors, enhancement mode MOSFETs, depletion mode MOSFETs, diodes, diode networks, LEDs, 2 and 3 lead bicolour LEDs, JFETs and many more. Further measurements are displayed including transistor gain, leakage current, pn voltage drops, LED voltages, MOSFET threshold voltages and much more. Even if you don't know anything about the part, just connect it in any configuration and the DCA55 will identify the type of part for you and also identify all the leads. Supplied with universal gold plated hook probes, battery and illustrated user guide. Not designed for in-circuit testing.

Key Features:

  • Automatic pinout detection and identification, connect any way round.
  • Automatic part type identification.
  • Supports semiconductors including transistors, MOSFETs, diodes, LEDs, JFETs and much more.
  • Detection of special component features such as transistors with diodes or transistors with built-in resistors.
  • Transistor gain measurement.
  • Transistor leakage measurement.
  • MOSFET gate threshold measurement.
  • Semiconductor voltage drop measurement.
  • Supplied with gold plated red/green/blue universal hook probes on 160mm flexible leads.
  • Clear backlit display.
  • Powered by single alkaline AAA cell (included).
