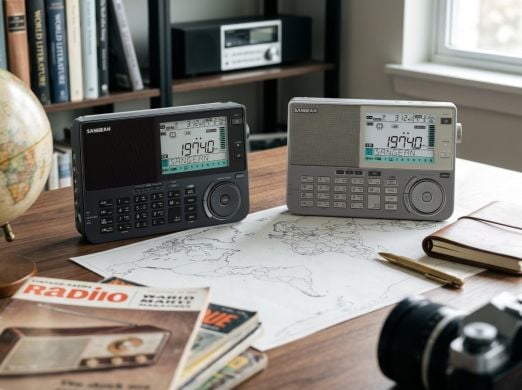

Call 0345 2300 599Sangean ATS-909X2+
A premium portable multi-band receiver for FM, medium wave, long wave, shortwave and air band, with enhanced SSB reception, selectable SSB bandwidths and an enormous 1,755-station memory.
The ATS-909X2+ builds on Sangean's flagship portable receiver with a particular focus on shortwave and SSB listening. Whether you are following international broadcasters, monitoring amateur-radio SSB signals, listening to aviation traffic or simply looking for a capable travel radio, the ATS-909X2+ combines wide coverage with direct keypad entry, rotary tuning, automatic station storage and detailed manual control.
More control for serious shortwave listening
The ATS-909X2+ refines the previous ATS-909X2 with improved SSB performance, selectable SSB bandwidths and expanded station-memory organisation.
Hear more than broadcast shortwave
In addition to international shortwave broadcasting, the ATS-909X2+ supports both USB and LSB reception for monitoring amateur-radio and other compatible SSB communications.
Fine tuning is available in 10 or 20 Hz steps, while selectable 1.2, 2.2 and 3 kHz SSB bandwidths help reduce adjacent-channel interference and let you optimise the sound for changing reception conditions.
118–137 MHz aviation monitoring
The dedicated air-band receiver expands the ATS-909X2+ beyond traditional world-band listening, allowing reception of compatible civil aviation communications across 118–137 MHz.
More information from FM stations
RDS/RBDS support can display compatible programme service, programme type, radio text and clock information alongside normal FM reception.
Find and organise stations automatically
ATS can automatically scan and store available LW, MW, SW and FM stations, while direct keypad entry, automatic scanning, manual tuning, memory recall and rotary tuning give you five different ways to reach the signal you want.
Detailed information at a glance
The large LCD provides tuning and memory information alongside signal-to-noise ratio and received signal strength indications. Battery level and charging indicators are also built into the display.
Built-in listening
The internal 76 mm speaker is driven by a Class AB amplifier with up to 1 W output when externally powered.
Music, News or Normal
Choose from three audio EQ settings to tailor the sound to speech, music or general listening.
Built for home listening and travel
The ATS-909X2+ can operate from its supplied 9 V / 1.2 A power adaptor or from four AA batteries. Rechargeable battery operation is supported.
More than a receiver
Dual-time display, three alarms, snooze, sleep timer and Sangean's HWS Humane Wake System make the ATS-909X2+ particularly useful as a travel radio. A lock switch prevents accidental control changes while packed away.
What's in the Box?
Sangean ATS-909X2+ Technical Information
Portable FM, MW, LW, shortwave and air-band receiver with SSB, RDS/RBDS, ATS automatic tuning and 1,755 station memories.
Receiver Coverage
| FM | 87.5–108 MHz for European operation |
|---|---|
| MW / AM | 522–1710 kHz at 9 kHz channel spacing |
| Long Wave | 100–519 kHz |
| Shortwave | 1.711–29.999 MHz |
| Air Band | 118–137 MHz |
SSB and Tuning
| SSB modes | USB / LSB |
|---|---|
| SSB bandwidths | 1.2 / 2.2 / 3 kHz selectable |
| SSB fine tuning | 10 or 20 Hz steps |
| Tuning methods | Direct entry, auto scan, manual tuning, memory recall and rotary tuning |
Memories and Automatic Tuning
| Total station presets | 1,755 |
|---|---|
| FM | 108 presets |
| MW | 81 presets |
| LW | 27 presets |
| SW | 1,404 presets |
| Air Band | 135 presets |
| ATS | Automatic tuning and storage for LW / MW / SW / FM |
Display and Audio
| Display | Backlit segment LCD |
|---|---|
| FM data | RDS / RBDS: PS, PTY, RT and CT |
| Speaker | 76 mm / 3 inch, 4 Ω |
| Amplifier | Class AB |
| Speaker output, externally powered | 1 W |
| Speaker output, battery powered | 0.6 W |
| EQ | Music / News / Normal |
Connections
| External antenna | 3.5 mm AM / shortwave external antenna connection |
|---|---|
| Aux input | 3.5 mm |
| Line / REC output | 3.5 mm |
| Earphone output | 3.5 mm stereo |
Power
| External power | 9 V DC / 1.2 A |
|---|---|
| Battery | 4 × AA 1.5 V |
| Rechargeable battery support | Yes |
| Maximum speaker playtime | Up to 28 hours |
| Maximum earphone playtime | Up to 46 hours |
Physical
| Dimensions | 207 × 134.7 × 41 mm |
|---|---|
| Weight | 722 g |
| Colour options | Titanium Slate / Titanium Silver |
Clock and Convenience
- Real-time clock
- Dual-time display
- Three alarm settings
- HWS Humane Wake System
- Snooze function
- Sleep timer
- Control lock switch
Supplied Accessories
- Mains power adaptor
- Earphones
- ANT-60 shortwave antenna
- Carrying pouch
