Air!Squitter FLARM Bundle
SKU Part Number: 66206
ADS-B receiver with FLARM as bundle with combined ADS-B/GPS antenna, FLARM active antenna, 2 antenna cables and mounting...
Read More
£1,000.00 £833.33
Availability: In stock
call

Seen this product cheaper elseware?

Call 0345 2300 599

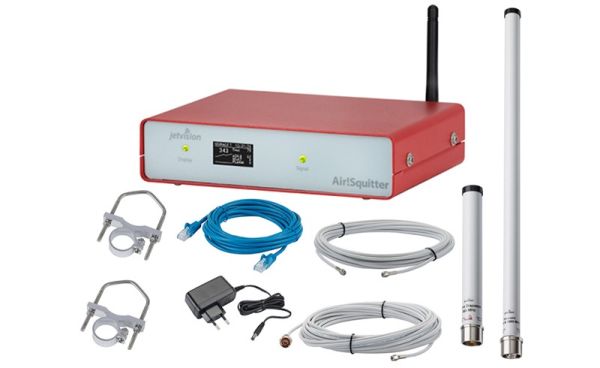

ADS-B receiver with FLARM as bundle with combined ADS-B/GPS antenna, FLARM active antenna, 2 antenna cables and mounting kits.

Integrated device with all features for problem-free ADS-B, FLARM and MLAT reception. OLED display with most important operating parameters. MLAT (Multilateration) is provided within the Jetvision Flight tracking network (see note below*). Feeders for FlightRadar24, FlightAware, Opensky Network, Planeplotter and ADSB Exchange. Connection over WIFI or LAN, supports simultaneously multiple users via desktop, tablet or smartphone. Extensive map display on the web browser, filter options, status, range and performance diagrams. Comes with a combined ADS-B/GPS antenna and a FLARM Active Diapason antenna cable plus 10m cable each.

* In this version, the Air!Squitter is permanently connected to the Jetvision Flight Tracking Network.

Commercial usage
In the commercial version of the Air!Squitter (activation by key) the data are available on the external interfaces as JSON, Binary, Port 30003 and ASTERIX and highly accurate GPS time stamps. The connection to the Jetvision Flight Tracking Network can be disconnected. Please contact our support ([email protected]).

Air!Squitter commercial license here.


In the box:

  • Air!Squitter ADS-B / FLARM / MLAT Receiver
  • Antenna 1090 MHz with internal GPS
  • Active FLARM antenna 868 MHz
  • Antenna mounting kits (2 pc.)
  • Antenna cable 10m (N male to SMA male) (1 pc.) ADS-B
  • Antenna cable 10m (SMA male to SMA male) (1 pc.) FLARM
  • Power Supply
  • LAN cable 5m

ADS-B 1090MHz receiver with OLED display
FLARM extension
Sensivity < -95dBm
OLED display for status- and operational parameters
Quadcore CPU, 512MB RAM, USB host + slave port
Power supply 5V/1A (1.5A max.)
WIFI client or Access Point mode
USB Ethernet emulation

For MLAT connected to the Jetvision Flight Tracking Netzwerk

Optional built-in industrial M.2 4G/GSM/LTE Modem
