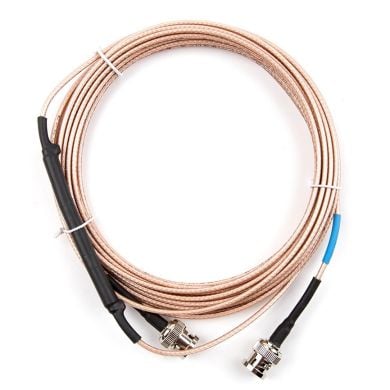

Chameleon RG-316 Jumper Cable with In-Line RFI Choke
SKU Part Number:
CHA-CONFIG-RG-316
The Chameleon RG-316 Jumper Cable with In-Line RF Choke is a lightweight, high-quality 50 ohm coax lead designed for portable amateur radio use....
Read More
Read More
As low as
£49.99
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The Chameleon RG-316 Jumper Cable with In-Line RF Choke is a lightweight, high-quality 50 ohm coax lead designed for portable amateur radio use. Available in either 15 foot or 25 foot lengths, it is ideal for QRP, SOTA, field day and compact station setups where weight and bulk matter.
Using RG-316 coax, this cable is approximately half the weight of an equivalent RG-58 coax cable and is much less bulky, making it easier to pack, route and deploy in the field. Each cable is fitted with male BNC connectors, making it well suited for portable radios, tuners, antennas and other BNC-equipped equipment.
A key feature of this jumper is the pre-installed in-line RFI choke, designed to help combat common mode currents. This can help reduce unwanted RF feedback and improve station performance, especially in portable installations where grounding and cable routing are not always ideal.
Rugged, compact and practical, this Chameleon RG-316 jumper is an excellent choice for operators who need a dependable coax lead that is easy to carry but still capable of serious performance.
Key Features
- High-quality 50 ohm RG-316 coax jumper
- Available in 15 foot and 25 foot lengths
- Fitted with male BNC connectors
- Pre-installed in-line RFI choke
- Helps combat common mode currents
- Ideal for QRP, SOTA and portable operators
- Approximately half the weight of equivalent RG-58 coax
- Less bulky than RG-58, making it easier to pack and deploy
- Rugged construction for field and shack use
- Rated to 500W at 30 MHz
Available Lengths
- 15 feet
- 25 feet
Specifications
- Cable type: RG-316 coax
- Impedance: 50 ohm
- Connectors: BNC male
- RF choke: Pre-installed in-line RFI choke
- Power rating: 500W at 30 MHz
- Applications: QRP, SOTA, portable radio, field operation and compact shack installations
Attenuation and Average Power
| Frequency | Nominal dB per 100 ft | Average Power |
|---|---|---|
| 30 MHz | 4.3 dB | 1.09 kW |
| 50 MHz | 5.6 dB | 0.84 kW |
| 150 MHz | 9.8 dB | 0.48 kW |
| 220 MHz | 11.9 dB | 0.39 kW |
| 450 MHz | 17.2 dB | 0.27 kW |
| 900 MHz | 24.7 dB | 0.18 kW |
| 1500 MHz | 32.3 dB | 0.14 kW |
| 1800 MHz | 35.5 dB | 0.13 kW |
| 2000 MHz | 37.6 dB | 0.12 kW |
| 2500 MHz | 42.4 dB | 0.10 kW |
| 5800 MHz | 66.9 dB | 0.06 kW |
| 8000 MHz | 80.0 dB | 0.05 kW |
