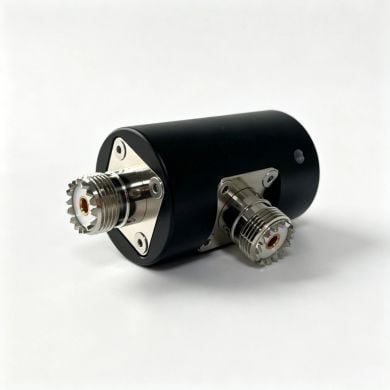

Chelegance JMOUNT-239 Portable Antenna Mount Base
SKU Part Number: CH0012633-M
Portable Antenna Mount Chelegance JMOUNT-239 ...
Read More
£35.95
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599
Portable Antenna Mount

Chelegance JMOUNT-239

A compact aluminium SO-239 antenna mounting base combining antenna, feedline, radial and support connections into one convenient platform for portable HF antenna installations.

RF CONNECTION
Dual SO-239 Top antenna connection with a convenient side-mounted SO-239 feedline connection.
RADIAL CONNECTION
Four 4 mm Sockets Quickly connect radial or counterpoise wires using standard 4 mm banana plugs.
MOUNTING
M10 & 1/4"-20 M10 × 1.5 base thread with a stainless-steel M10-to-1/4"-20 mounting adaptor included.

Built for portable field antennas

The JMOUNT-239 uses a dual SO-239 pass-through arrangement, with the antenna connected to the top socket and the coax feedline connected at the side. It is suitable for compatible portable verticals, telescopic whips, mobile whips and other antenna accessories using PL-259 connectors.

The four integrated 4 mm banana sockets provide a simple connection point for radial or counterpoise wires, while the included mounting adaptor allows the base to be used with compatible M10 supports or suitable 1/4"-20 tripods and field stands.

Key Specifications
Frequency Range
1–60 MHz
Power Handling
Up to 500 W, installation dependent
RF Connectors
2 × SO-239
Base Thread
M10 × 1.5

What's Included?

  • 1 × JMOUNT-239 aluminium antenna mount base
  • 1 × protective storage case with foam insert
  • 1 × stainless-steel M10-to-1/4"-20 adaptor
  • 4 × 4 mm banana plugs

Please note: antenna, coax cable, radial wires, tripod, camera stand and ground spike are not included.
