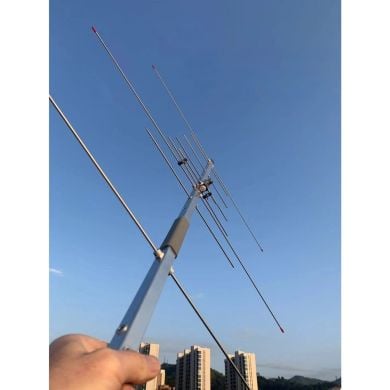

Call 0345 2300 599The Chelegance U5V3++ is a portable VHF and UHF dual band directional Yagi antenna designed for amateur satellite, ARISS, ISS, repeater and target tracking operation. Its parallel dual band Yagi design provides strong forward directivity and useful gain on both bands, making it ideal for operators who need reliable handheld or tripod mounted performance in the field.
Covering 144 to 148MHz on VHF and 430 to 440MHz on UHF, the U5V3++ is well suited to satellite passes, ISS contacts and other weak signal VHF/UHF applications. With gain of 9.5dBi on VHF and 11.15dBi on UHF, low VSWR and up to 50W power handling, it provides a compact but capable solution for portable directional communication.
The two section plug in boom allows the antenna to be quickly assembled and packed down for transport, while maintaining the correct element spacing for effective Yagi performance. The boom includes three M6 threaded mounting points, two 17mm ball mounts and a compatible phone holder, allowing operators to mount a phone for real time satellite tracking during passes.
The U5V3++ can be used handheld, attached to a tripod or mounted to a suitable mast or pole using the supplied clamp. This makes it a flexible choice for field work, portable satellite operation, ARISS contacts and directional repeater or signal finding use.
Please note that each boom section and element must be fitted in the correct orientation. Incorrect assembly, such as reversing elements, may affect gain and directional performance.
Key Features
- Portable VHF/UHF dual band directional Yagi antenna
- Designed for satellite, ISS, ARISS, repeater and target tracking operation
- Covers 144 to 148MHz and 430 to 440MHz amateur bands
- Parallel Yagi structure for dual band directional performance
- 9.5dBi gain on VHF and 11.15dBi gain on UHF
- VSWR less than 1.5
- Maximum power handling of 50W
- Two section plug in boom for easy transport
- Approximate boom length of 61cm
- Three M6 threaded mounting points
- Includes two 17mm ball mounts and phone holder
- Supports handheld, tripod, bracket, mast or pole mounted use
- SO-239 RF connector
- Ideal for portable and temporary field operation
Specifications
- Product type: UV dual band portable directional Yagi antenna
- Antenna structure: Parallel directional Yagi
- Operating frequency: VHF 144 to 148MHz, UHF 430 to 440MHz
- Impedance: 50 ohms
- VSWR: Less than 1.5
- Gain, VHF: 9.5dBi
- Gain, UHF: 11.15dBi
- Maximum power handling: 50W
- Construction: Plug in modular structure
- Boom structure: Two section plug in boom
- Boom length: Approximately 61cm
- Net weight: Approximately 750g
- Mounting ports: Three M6 standard threaded ports
- Ball mounts: Two 17mm ball mounts with M6 thread
- RF connector: SO-239
- Package dimensions: 65 x 7 x 7cm
- Package weight: Approximately 800g
Supplied Contents
- Two section 61cm boom with insulated hand grip
- VHF element set
- UHF element set
- Element mounting hardware set
- 2 x 17mm ball mounts with M6 thread
- Phone holder compatible with 17mm ball mount
- Pole mounting clamp
