Call 0345 2300 599CHELEGANCE EU868 LoRa Antenna Kit
A complete outdoor 858–878 MHz antenna system for compatible Meshtastic and MeshCore nodes and repeaters, available with your choice of 5 dBi or 8 dBi fibreglass antenna.
Designed for permanent or semi-permanent EU868 installations, this kit combines a weather-resistant vertical antenna, mast-mounting hardware and a 1 m low-loss LMR-400 feedline terminating in RP-SMA male. The LMR-400 cable was specifically requested by ML&S in preference to the higher-loss RG-58 normally supplied with this antenna kit, helping preserve valuable link budget at 868 MHz.
LMR-400 instead of RG-58
We specifically requested that our version of this antenna kit be supplied with a 1 m LMR-400 feedline rather than the RG-58 normally supplied with the standard kit. At frequencies around 868 MHz, reducing feedline loss helps deliver more of the transmitted signal to the antenna and more of the received signal back to the radio.
Cable figures are representative manufacturer specifications for the cable types themselves. Actual assembled feedline loss will also depend on connector construction and the finished cable assembly.
5 dBi or 8 dBi
Both versions cover the same 858–878 MHz frequency range. Choose according to your required gain, antenna size and intended installation.
5 dBi, 800 mm 8 dBi, 1300 mmN-Type antenna to RP-SMA device
The antenna uses an N-Type connection and the supplied 1 m LMR-400 cable terminates in RP-SMA male at the radio end. This makes the complete kit directly suited to compatible EU868 equipment using the required RP-SMA antenna connection without needing to assemble a separate feedline.
An ideal companion for an outdoor mesh node
The RP-SMA connection makes this kit directly suitable for compatible devices such as the Seeed SenseCAP Solar Node P1 Pro, providing a straightforward way to move the antenna to a higher and more favourable position while keeping the node itself securely installed.
View SenseCAP P1 ProHeight and location matter
Mount the antenna in a suitable elevated location with as clear a path to the surrounding coverage area as practical. Antenna height and site selection can be just as important to a successful LoRa link as the antenna's quoted gain.
Actual coverage depends on the complete installation, including antenna height and selection, feedline loss, terrain, buildings and other obstructions, interference, radio configuration and applicable local regulations. Choose the antenna version that best suits the installation rather than relying on gain alone.
What's in the Box?
Please note: mast, pole, Meshtastic / MeshCore device and other installation hardware are not included.
CHELEGANCE EU868 Outdoor LoRa Antenna Kit
Outdoor 858–878 MHz antenna system for compatible Meshtastic, MeshCore and EU868 LoRa equipment, available in 5 dBi and 8 dBi versions and supplied by ML&S with a 1 m LMR-400 feedline.
General Specifications
| Frequency range | 858–878 MHz |
|---|---|
| Nominal impedance | 50 Ω |
| Polarisation | Vertical linear |
| Antenna connection | N-J |
| Device connection | RP-SMA male |
| Feedline | 1 m LMR-400, specifically requested for ML&S |
| Mounting | Pole / mast clamp supplied |
Variant Specifications
| Specification | 5 dBi | 8 dBi |
|---|---|---|
| Manufacturer SKU | CH0032637-EU-5DB | CH0032637-EU-8DB |
| Specified gain | 5 ± 1 dBi | 8 ± 1 dBi |
| VSWR | <2.5 | <2.5 |
| Antenna length | 800 ± 10 mm | 1300 ± 20 mm |
| Specified efficiency | >75% | >80% |
| Operating temperature | −30 to +65 °C | −30 to +65 °C |
| Salt spray test | 48 hours | 48 hours |
Feedline Comparison
| Cable | Representative Attenuation at 900 MHz | Use in this ML&S Kit |
|---|---|---|
| LMR-400 | Approx. 0.13 dB/m | Included |
| Representative RG-58 | Approx. 0.45 dB/m | Not supplied |
Comparison note: figures above are representative published cable attenuation specifications at 900 MHz, used as a close comparison point for EU868 operation. Actual loss through a finished cable assembly will also depend on connectors and assembly construction.
Device Compatibility
Suitable for compatible Meshtastic, MeshCore and other EU868 LoRa equipment using the required RP-SMA antenna connection.
Directly suitable for the external antenna connection on the Seeed SenseCAP Solar Node P1 Pro. For other equipment, confirm the connector type and regional frequency configuration before purchase.
Installation Notes
Actual range depends on antenna selection, installation height, terrain, obstructions, feedline loss, interference, radio configuration and local regulations. A higher-gain antenna does not by itself guarantee greater useful coverage in every installation.

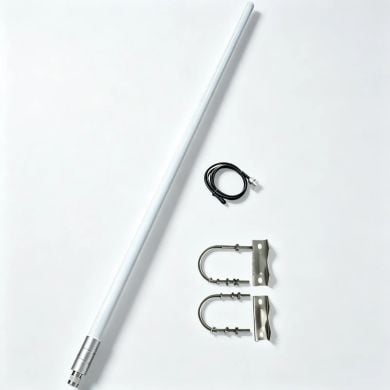

Package Contents
- 1 × selected 858–878 MHz fibreglass antenna, 5 dBi or 8 dBi
- 1 × ML&S-specified 1 m LMR-400 N-J to RP-SMA male feedline
- 1 × pole / mast mounting clamp assembly
