Baofeng HT Digirig Cable Set K1 Data and Programming Cables (Requires Digirig Lite)
SKU Part Number:
BAOFENG-MOBILE
The Baofeng HT Digirig Cable Set is designed for handy talkies that use the K1 style twin plug connector with 3.5 mm and 2.5 mm TRS jacks. It...
Read More
Read More
£35.99
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599
The Baofeng HT Digirig Cable Set is designed for handy talkies that use the K1 style twin plug connector with 3.5 mm and 2.5 mm TRS jacks. It provides a complete solution for digital modes and programming when used with a compatible Digirig interface.

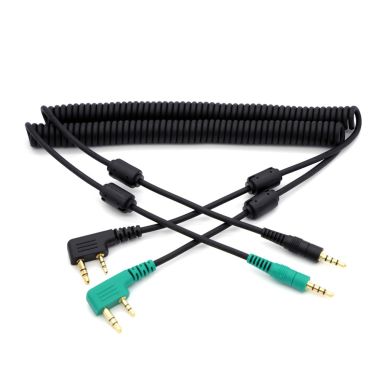

The set includes two coiled cables.
The black K1 connector cable is the data lead. It combines audio and PTT control in a single connection and plugs into the Digirig audio socket. This allows operation of digital modes and packet radio protocols such as FT8, FT4, SSTV, APRS, Echolink and Allstar. It is also well suited to satellite work including APRS and SSTV.
The green K1 connector cable is the Chirp programming lead. It connects to the serial green socket of Digirig Mobile. Programming requires Digirig Mobile configured in logic levels or TX-500 mode.
The audio cable is compatible with Digirig Mobile 1.6 or later in any configuration, as well as other Digirig interface models.
Both cables are coiled to help prevent knots and kinks, measuring approximately 24 inches when relaxed and extending to around 72 inches when stretched. They are shielded and fitted with ferrite beads at both ends to help reduce RF interference. Construction uses quality materials for reliable long term use.
Compatible Radios
The data cable works with many popular K1 equipped HTs including selected models from:
-
Baofeng
-
AnyTone including AT-D868UV, AT-D878UV, AT-878UVII Plus
-
Wouxun including KG-UVD1P, KG-679
-
Kenwood including TH-K20, D74 and various TK series models
-
BridgeCom handheld models
-
Puxing PX series models
-
Quansheng TG series models
-
Linton LT series models
-
Weierwei VEV series models
-
TIDRADIO TD-V2, TD-H8, TD-H3
-
KST V6 handheld radio
-
KS-8R handheld radio
Programming results may vary depending on model and firmware.
Key Features
-
K1 twin plug connector, 3.5 mm and 2.5 mm TRS
-
Data cable with combined audio and PTT control
-
Separate Chirp programming cable
-
Compatible with Digirig Mobile 1.6 or later
-
Coiled design, approx 24 inch relaxed, 72 inch extended
-
Shielded cables with ferrite RF chokes at both ends
-
Suitable for FT8, FT4, SSTV, APRS, Echolink, Allstar and satellite work
Other HTs that can be interfaced with the data cable (programming results may vary)
AnyTone Handheld Radio: AT-D868UV, AT-D878UV, AT-878UVII Plus
WOUXUN handheld Radio: KG-UVD1P, KG-679
Kenwood handheld Radio: TK-3207, TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160, TH-K20, D74
BridgeCom handheld Radio: BCH-220, BCH-270, D-500, D-30
PUXING handheld Radio: PX-888, PX-888K, PX-777, PX-333, PX-666, PX-328
QUANSHENG handheld Radio: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT
Linton handheld Radio: LT-6288, LT-5288, LT-2288, LT-3288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268 , LT6188, LT3288
WEIERWEI handheld Radio: VEV-3288S,VEV-V1000,VEV-6288, VEV-3288
TIDRADIO TD-V2, TD-H8, TD-H3
KST V6 handheld Radio
KS-8R handheld Radio
